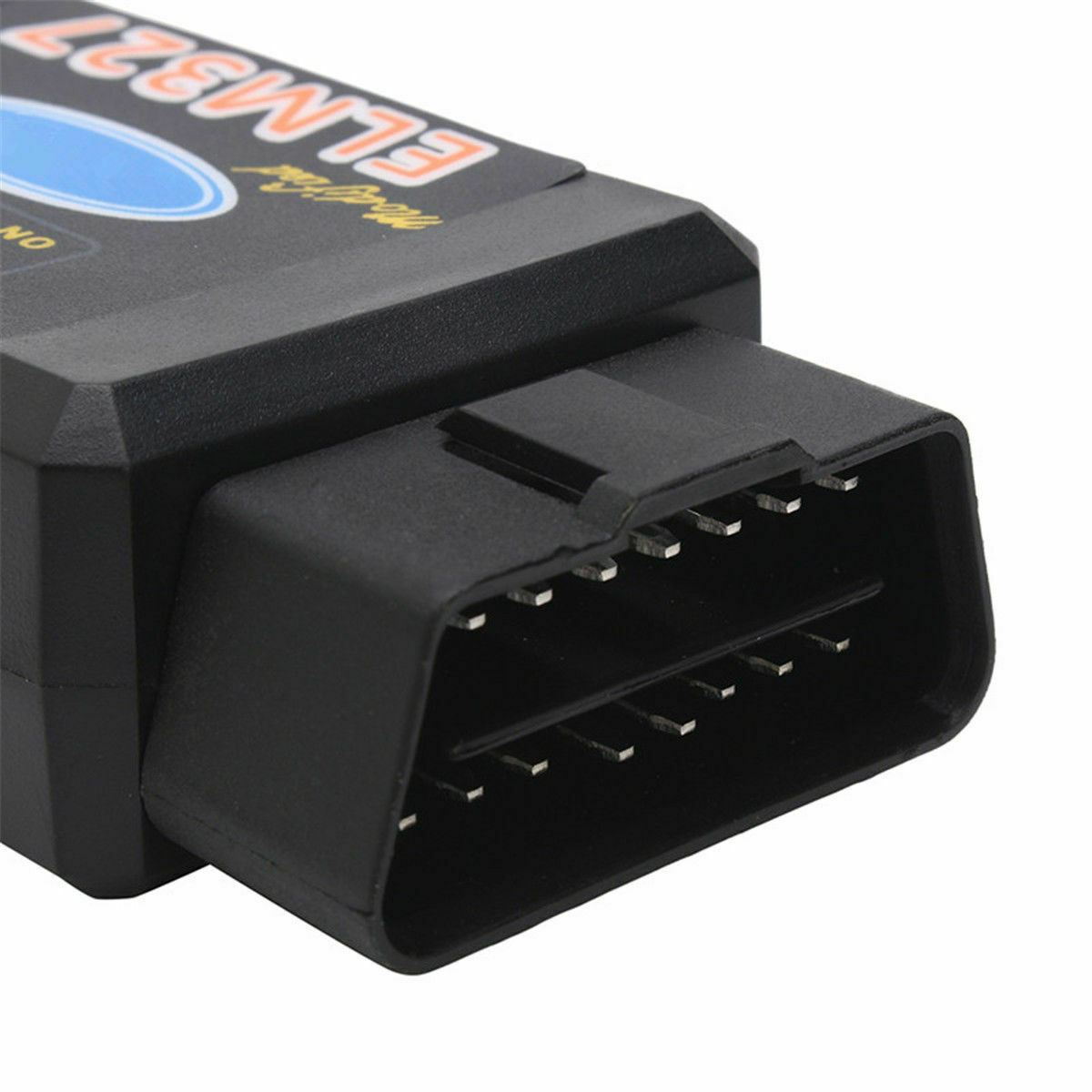

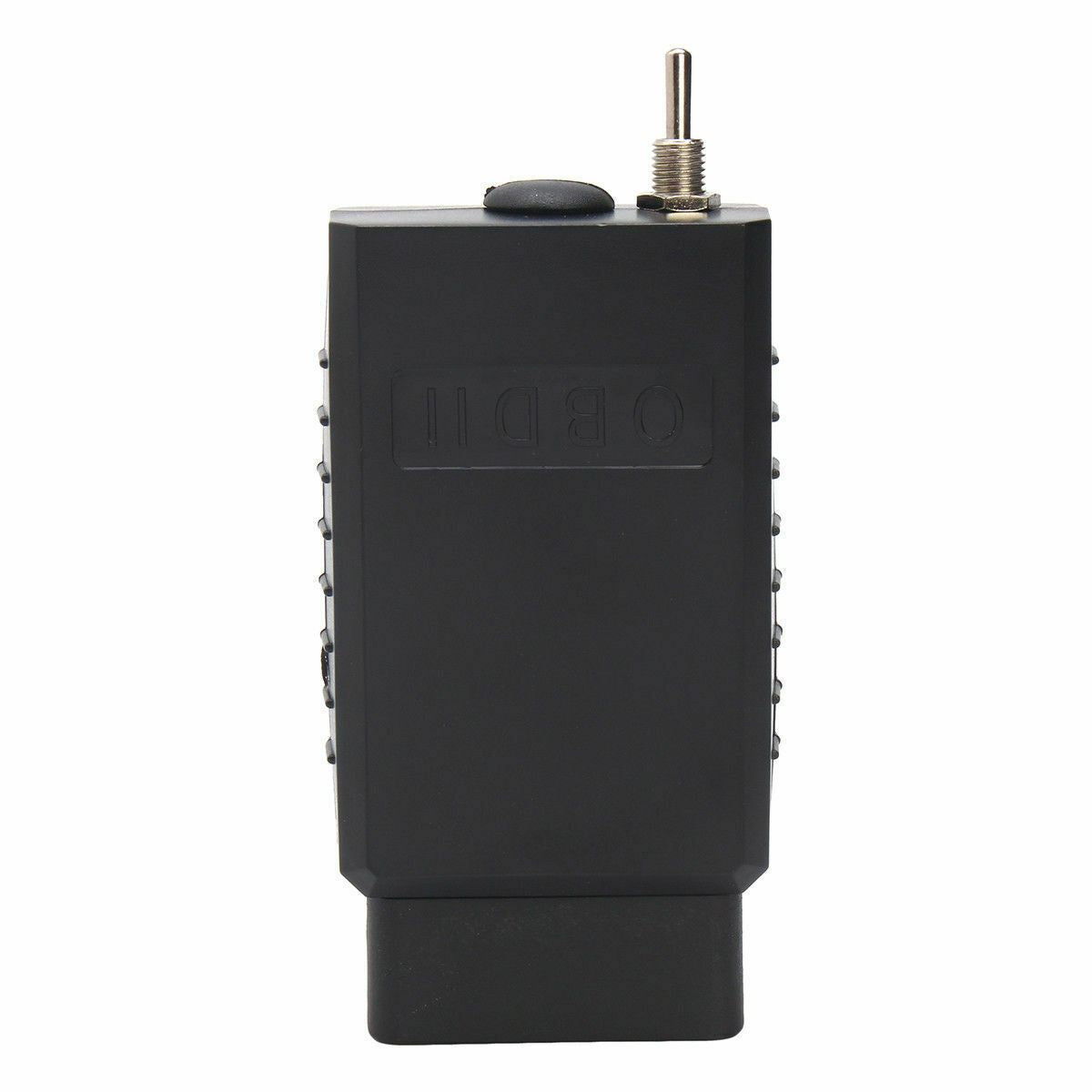

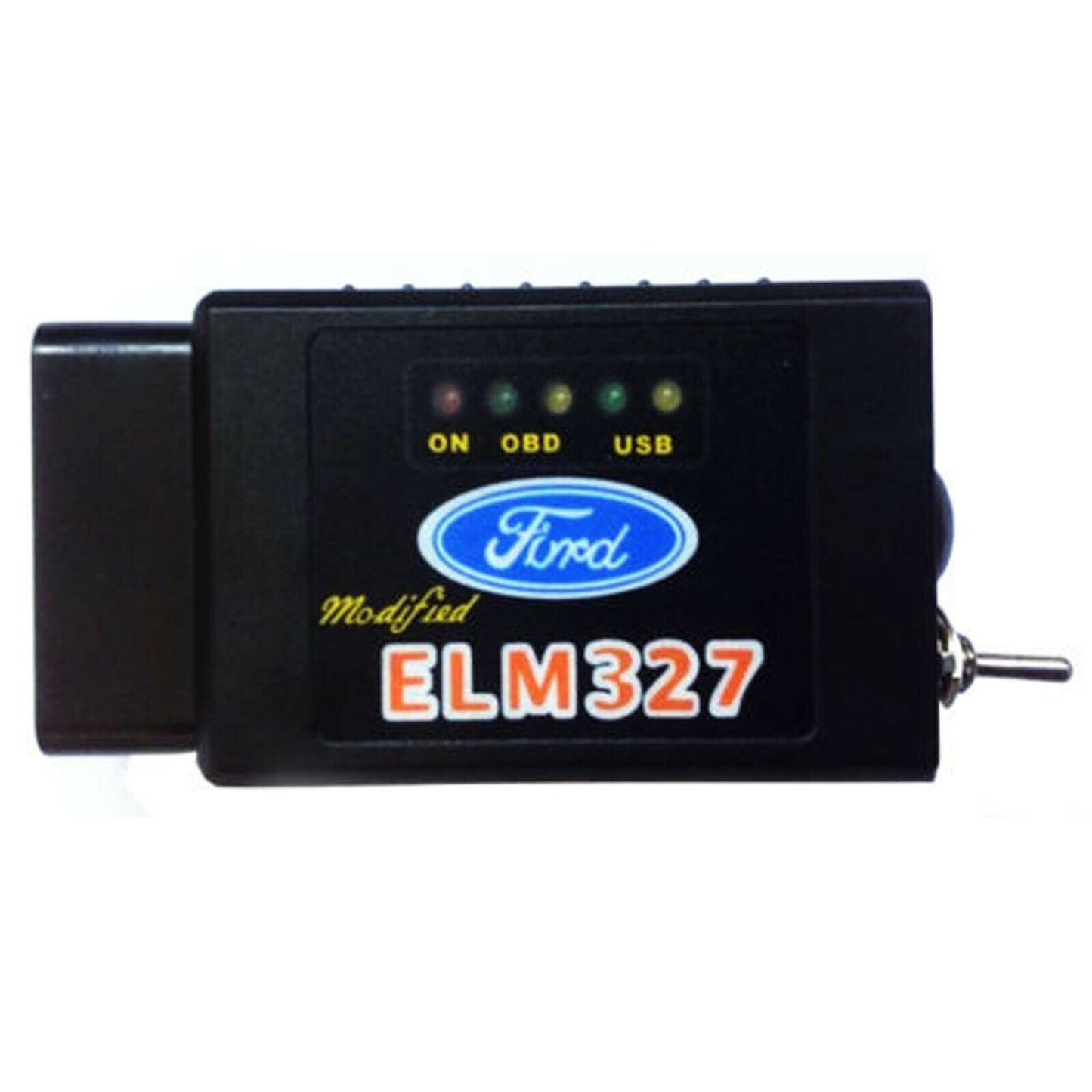

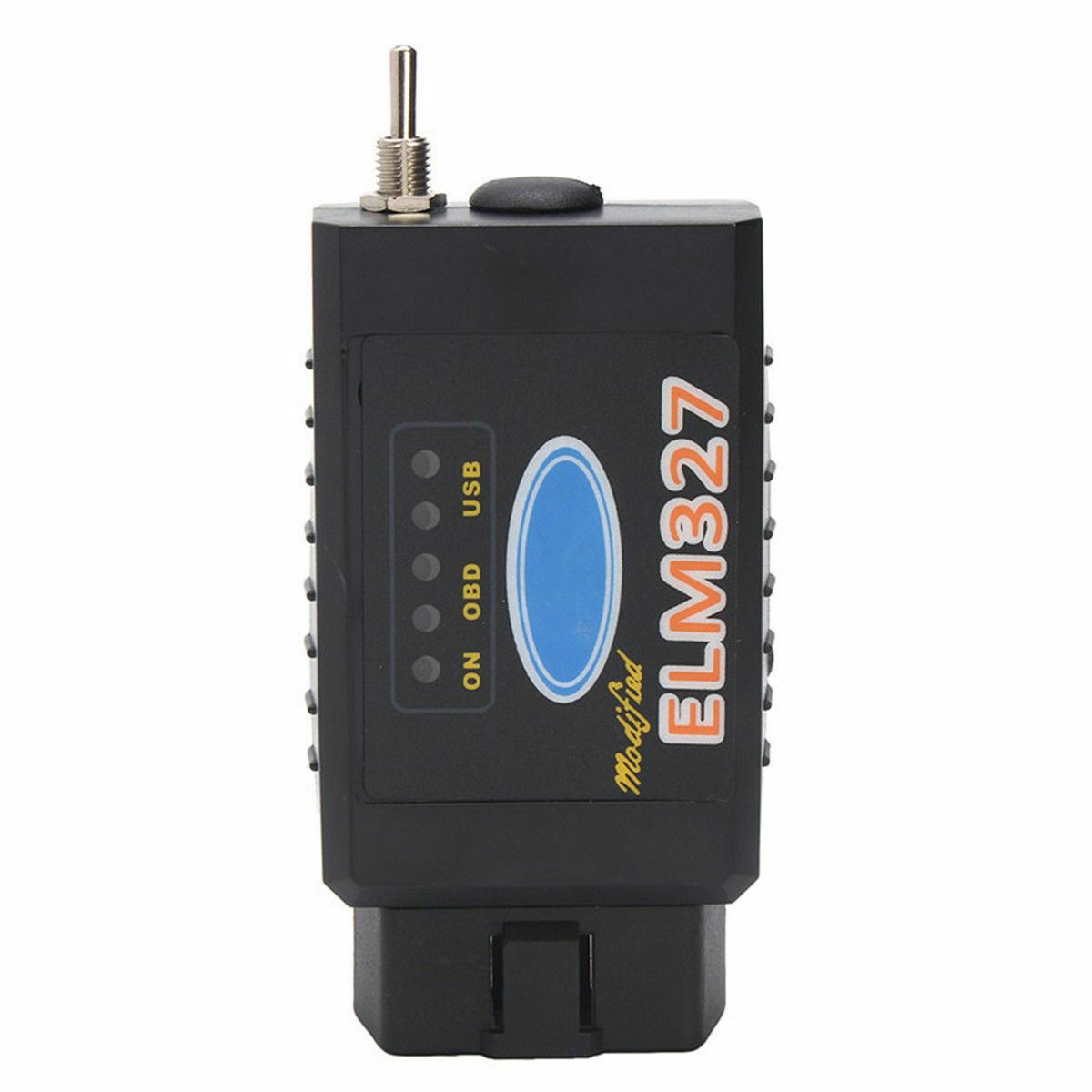

Forscan Bluetooth Diagnostic Tool Switch Modified ELM327 For Ford HS MS / Mazda

  • $44.49
    Unit price per
Tax included. Shipping calculated at checkout.


Description:

Forscan ELM327 Bluetooth with switch, full working with Forscan software can be downloaded from Forscan website

With genuine FT232rl Chip, ELM327 HS + FORScan + MS CAN

Can update driver online from official website for Win7, Win8

Can OEM with new design

Software can be downloaded from official website

This interface will allow you to realize a diagnosis on vehicles FORD group.

If you have a FORD, this interface is for you!

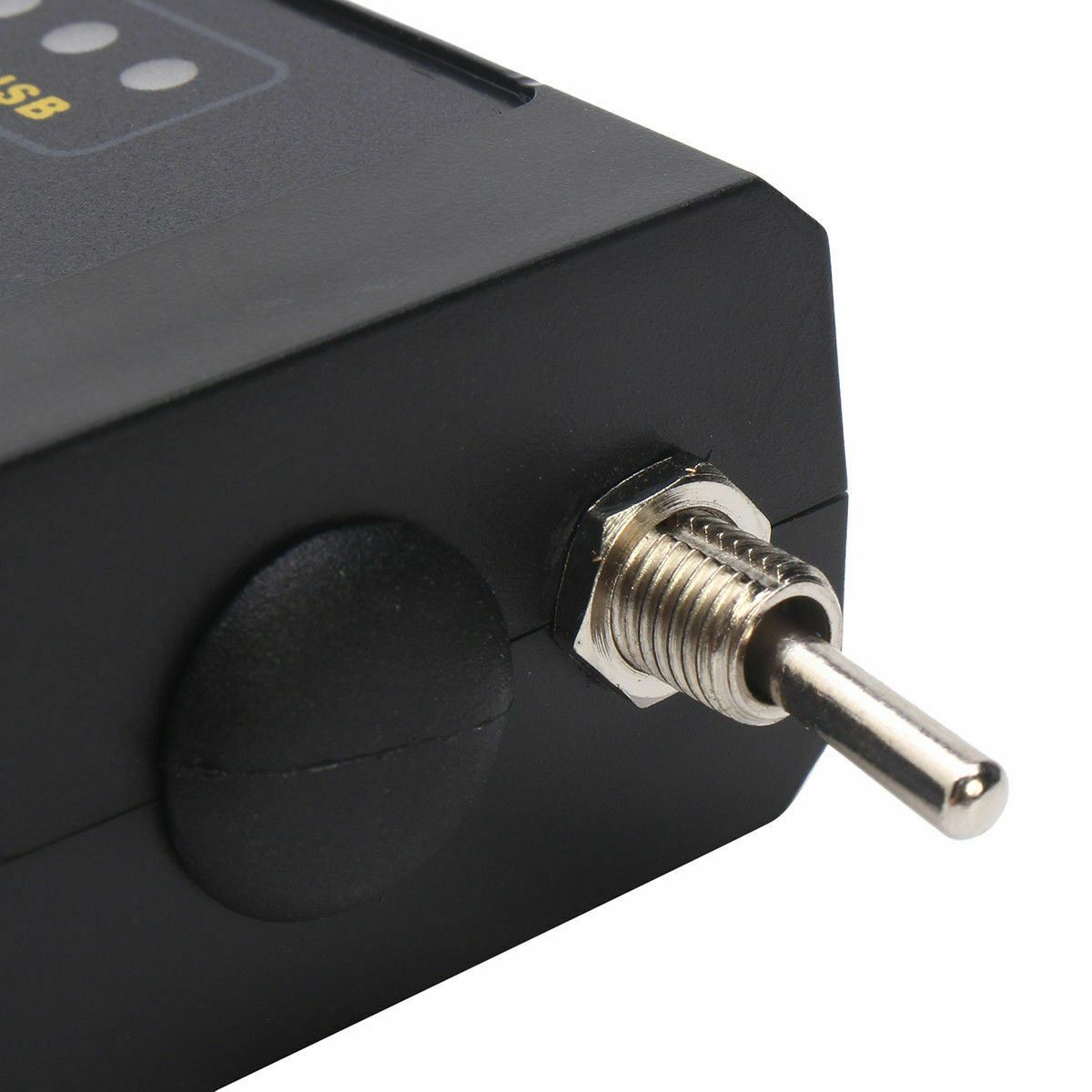

Using the switch, so you can access the FORD proprietary networks like CAN HS, MS CAN.

This interface will show you much more easily and quickly the settings you have selected. FORSCAN associated software, you can access many computers. A list of computers is also available on the official website.

It’s the best available resource in the market to work with software like FORSCAN and FOCCCUS diagnostic software, specially designed for FORD and some MAZDA Models.

To check it’s compatibility for your FORD visit the official website of FORSCAN

Perform all functions, the counterfeits would be lack of performing all the functions

Supported communication protocols:

ISO15765-4 (CAN)

ISO14230-4

ISO9141-2

J1850 VPW (GM vehicles)

J1850 PWM (Ford vehicles)

FORD CAN HS, MS CAN FORD FORD 9141



With genuine FT232rl can be tested via updating driver on official website for FT232rl; Those fake ones would be locked or failed, our genuine would get through smoothly.

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others


Features:

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols

Automatic

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2 (5 baud init,10.4Kbaud)

ISO14230-4 KWP (5 baud init,10.4 Kbaud)

ISO14230-4 KWP (fast init,10.4 Kbaud)

ISO15765-4 CAN (11bit ID,500 Kbaud)

ISO15765-4 CAN (29bit ID,500 Kbaud)

ISO15765-4 CAN (11bit ID,250 Kbaud)

ISO15765-4 CAN (29bit ID,250 Kbaud)

A.SAE J1939 CAN (29bit ID,250*Kbaud)

B.USER1 CAN (11*bit ID,125*Kbaud)

C.USER2 CAN (11*bit ID,50*kbaud)

Default settings (user adjustable)


Software:

  • For Android: Torque+1.5.58+
  • For Symbian: OBDScopev1.21
  • For Window Mobile-palm-pc-pocket pc
  • ScanMaster--ELM v2.1-pc
  • PCMSCAN-pc
  • OBD2Spy
  • ELM327-V1.2-pc
  • EasyOBDII
  • WOBDCRAZY

Specifications:

  • Output Protocol: S232 to Bluetooth
  • Frequency: 8400

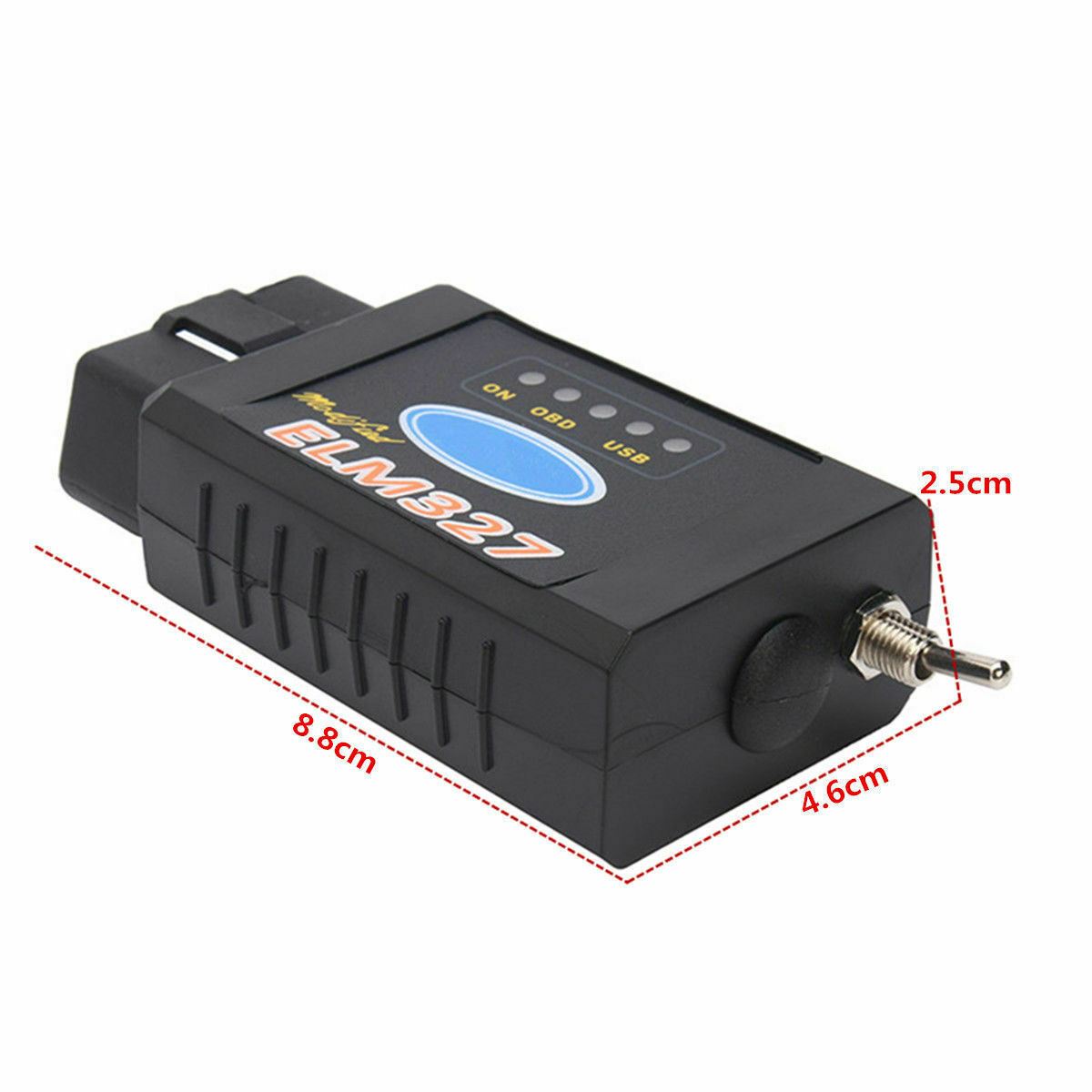

  • Size: 88*46*25
  • Voltage: 12V
  • Current: 45mA
  • Bluetooth: 10M
  • Supported platform: Android, Symbian, Windows Mobile, palm, pc, pocket pc.

Package Includes:

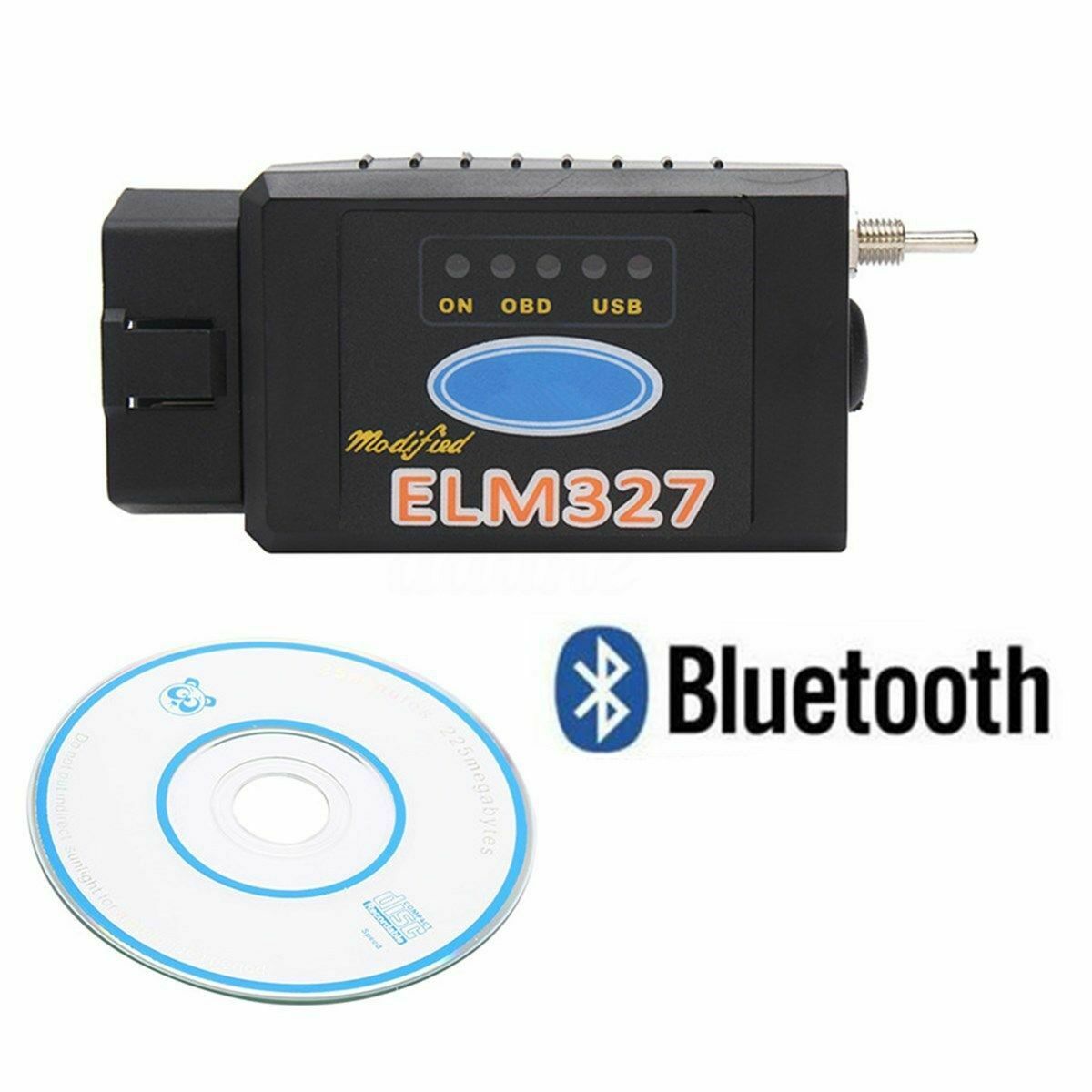

1 X Forscan ELM327 Bluetooth with Switch

1 X CD-ROM
