Launch ECU & TCU programmer X431PRO5 with smartlink

LAUNCH X431 ECU & TCU Programmer Standalone PC version supports checksum correctly

10inch
WIFI & Bluetooth Connection+ Full
System Test+ Full Reset Services+
ECU Coding + Active Test+OBD1
connector

Supports ECUs data reading and writing quickly, including reading the chip ID and backing up EEPROM data, backing up FLASH data and restoring EEPROM/FLASH data.
Launch X431 ECU & TCU Programmer Standalone PC Version. There are two methods to read information of different vehicle brands ECUs. X-431 ECU & TCU Programmer also supports data processing, anti-theft and file verification.

Functions

1. ECUs Data reading and writing fast.
• Support two methods to read information of different vehicle brands ECUs.
• Support Read the chip ID and backup EEPROM data.
• Support Backup FLASH data and restore EEPROM/FLASH data. • Adds immo off function to MEDC17 ECUs • Support checksum correction • Support VAG MEDC17 ECU Clone, VAG Simos 8.5-8.6 Clone, Porsche Simos 8.5 Clone, Porsche SDI-6-7-8 Clone.

2. Support data processing, anti-theft and file verification.

3. Current adapter accessories as below

• X-PROG3 adapter cable 1 (DQ200XX)
• X-PROG3 adapter cable 2 (VL381)
• X-PROG3 adapter cable 3 (DQ380)
• X-PROG3 adapter cable 4 (DQ250)
• X-PROG3 adapter cable 5 (DL501)
• X-PROG3 adapter cable 6 (DL382)
• X-PROG3 adapter cable 7 (VGS-NAG3)
• X-PROG3 adapter cable 8 (VGS2-FDCT/VGS-FDCT)
• X-PROG3 adapter cable 9 (VGS3-NAG2)
• X-PROG3 adapter cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)
• X-PROG3 adapter cable 11 (MPS6)
• X-PROG3 adapter cable 12 (DPS6)
• X-PROG3 Adapter Cable Main Line (ML) Download Launch ECU Programmer Software

Software Language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese
Select the corresponding language setup to be installed.

1 year free update online, then subscription cost $170/year.

ECU Programmer Standalone vs. X-prog3 + X431 Tablet

1. VW Audi Porsche clone function is in data processing section
2. Connection is more convenient
3. Data read and write speed is faster and more stable (3 times faster)
4. Data processing and transfer on PC is more convenient
5. Adds immo off function
6. Standalone version cannot do key programming.

How to use Launch ECU TCU Programmer PC Software?

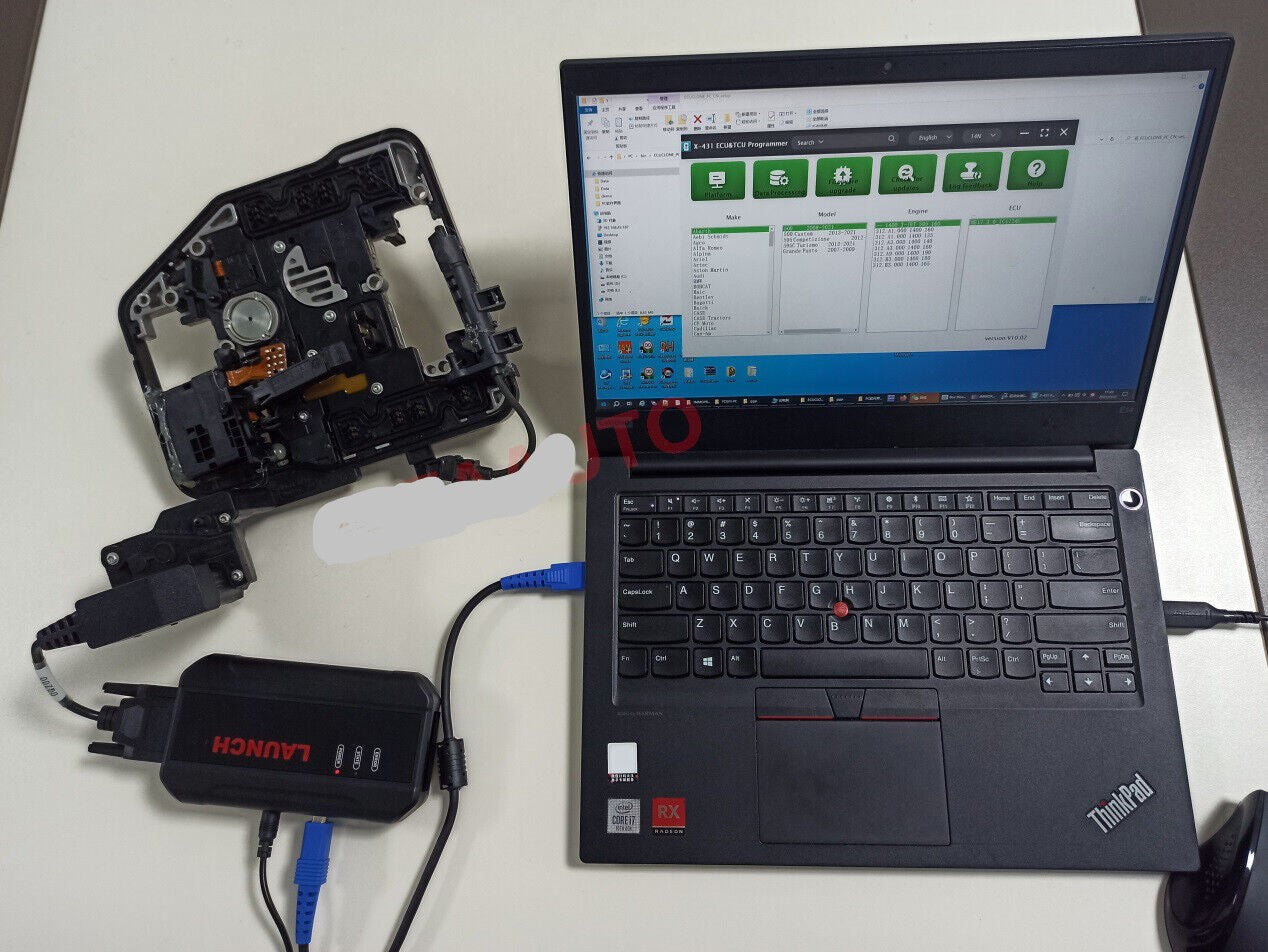

Connect the ECU programmer to the computer by cable, run PC software.
The serial number is automatically recognized from the ECU programmer. The activation code should be obtained from the ECU programmer envelope.

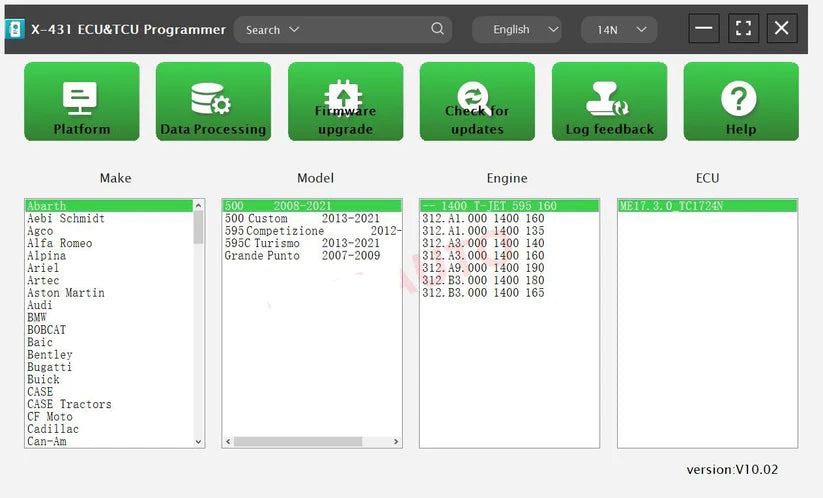

PC Software Description
First connect X-431 ECU & TCU Programmer to the computer with a hollow wire. Then click to open the software. The serial number will be automatically recognized from X-431 ECU&TCU Programmer, and the activation code should be obtained from the envelope line of X-431 ECU & TCU Programmer. Click [Activate] to activate (activate only once, no need to activate again later).

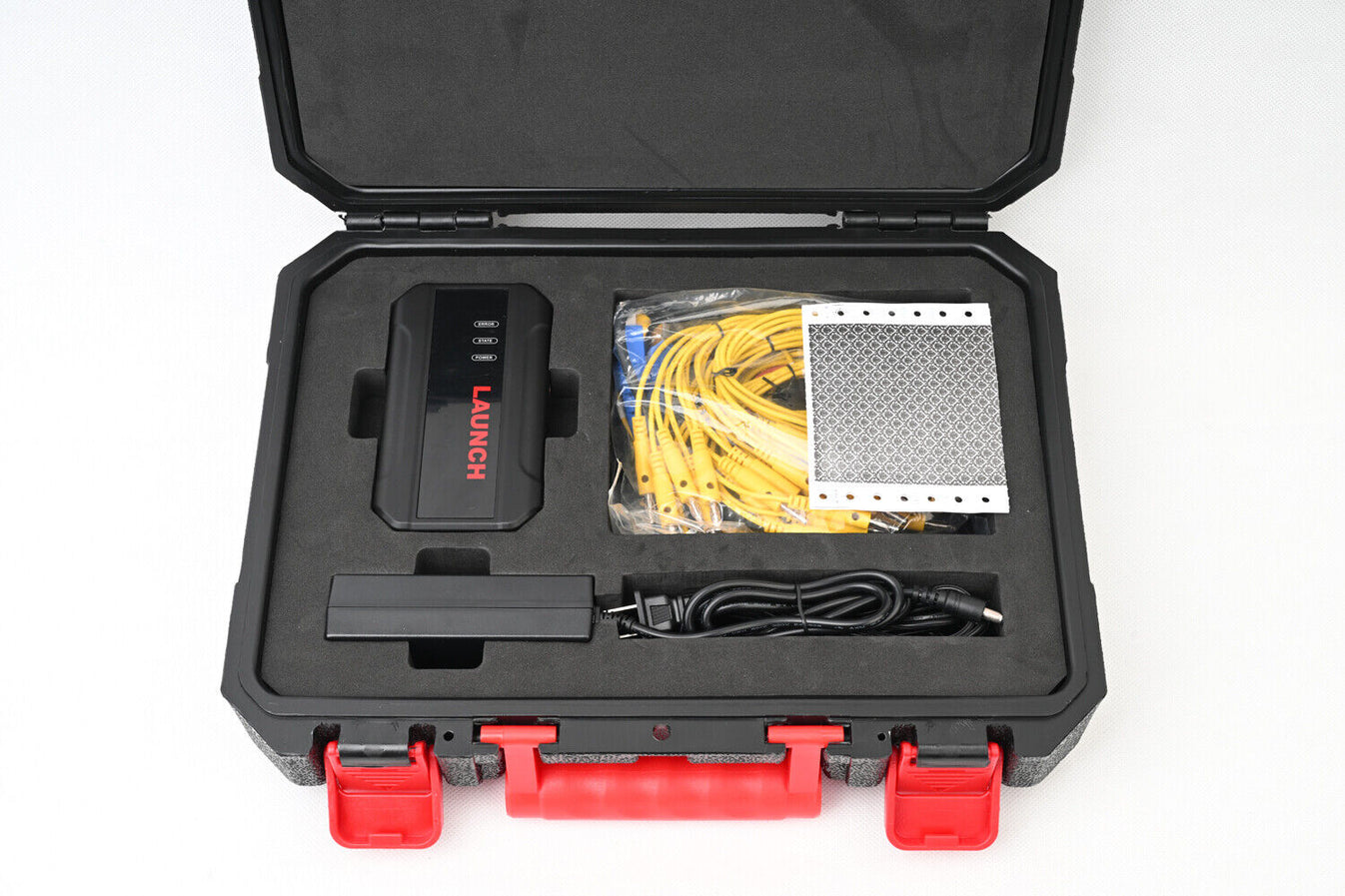

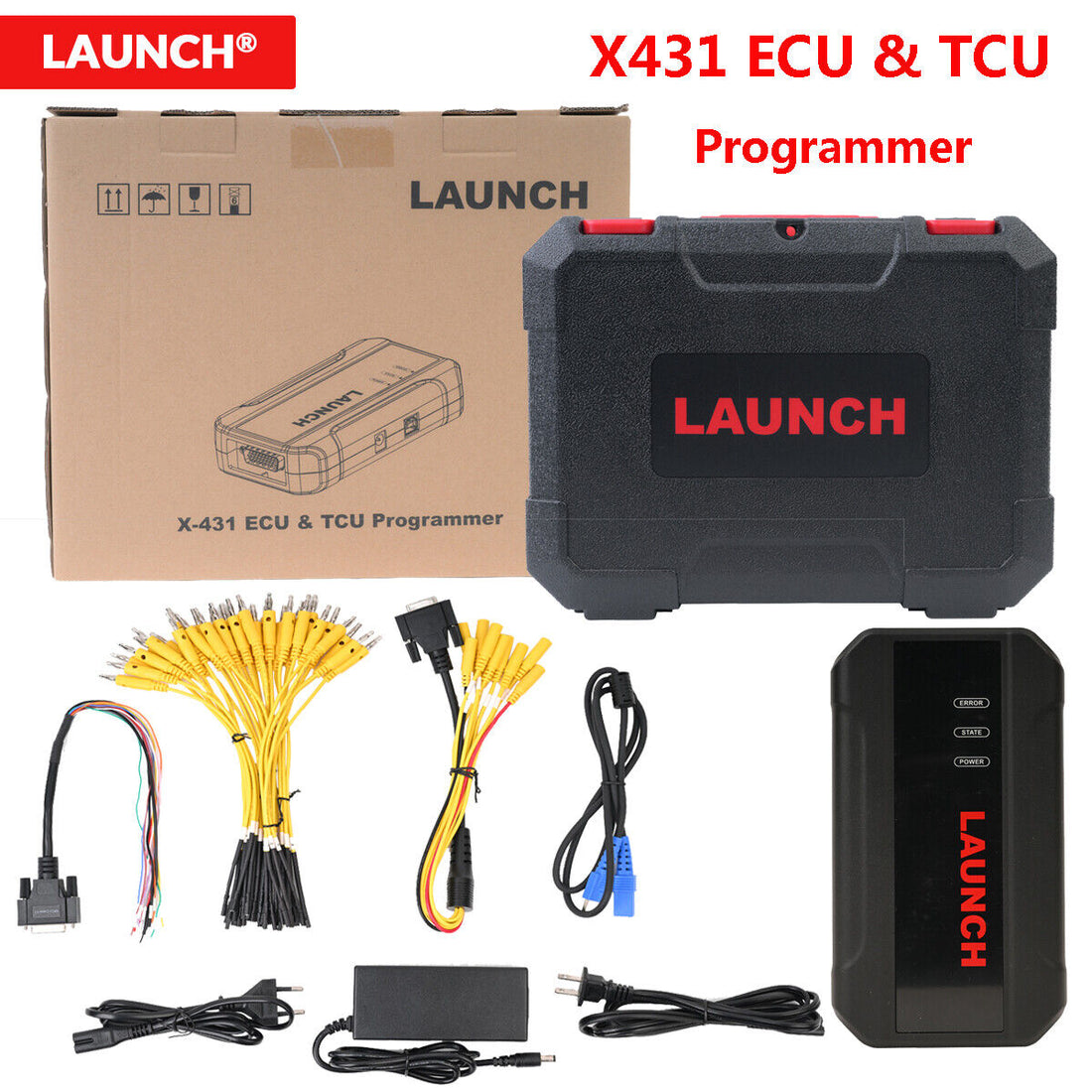

Package includes:

1 set ECU & TCU Programmer
