6x ELM OBD2 OBDII Adapters Auto Car Diagnostic Cable Set Connector Jeep Chrysler

  • $34.99
    Unit price per
Tax included. Shipping calculated at checkout.


Description:

Six ODB cable adapters to allow additional diagnostic options for Italian cars. These include ENIGINE, ABS, POWER STEERING and CAN ECU's.

Green Adapter Lead (MultiECUScan / FiatEcuScan Adapter 1) = Engine, ABS, Power Steering

Red Adapter Lead (MultiECUScan / FiatEcuScan Adapter 2) = Airbag

Yellow Adapter Lead (MultiECUScan / FiatEcuScan Adapter 3) = CAN

Purple Adapter Lead (MultiECUScan / FiatEcuScan Adapter 4) = Electronic Hood

Blue Adapter Lead (MultiECUScan / FiatEcuScan Adapter 5)

Grey Adapter Lead = Female pin 6 to male pin 12 / Female pin 14 to male pin 13

Note: no software is supplied and no diagnostic cable is supplied. You are buying the adapter cables for use with the MultiEcuScan software.

Package Includes:

6 x 16 Pin OBD Cable Adaptors

Technical Details:

Advised by MultiECUScan / FiatECUScan diagnostic software
Compatible with ELM327 or/and KKL (VAG COM)

Pin Configurations:
Green Adapter Lead = Female pin 7 to male pins 1,7,9,12.
Red Adapter Lead = Female pin 7 to male pin 3
Yellow Adapter Lead = Female pin 6 to male pin 1 / Female pin 14 to male pin 9 / Female pin 7 to male pin 12

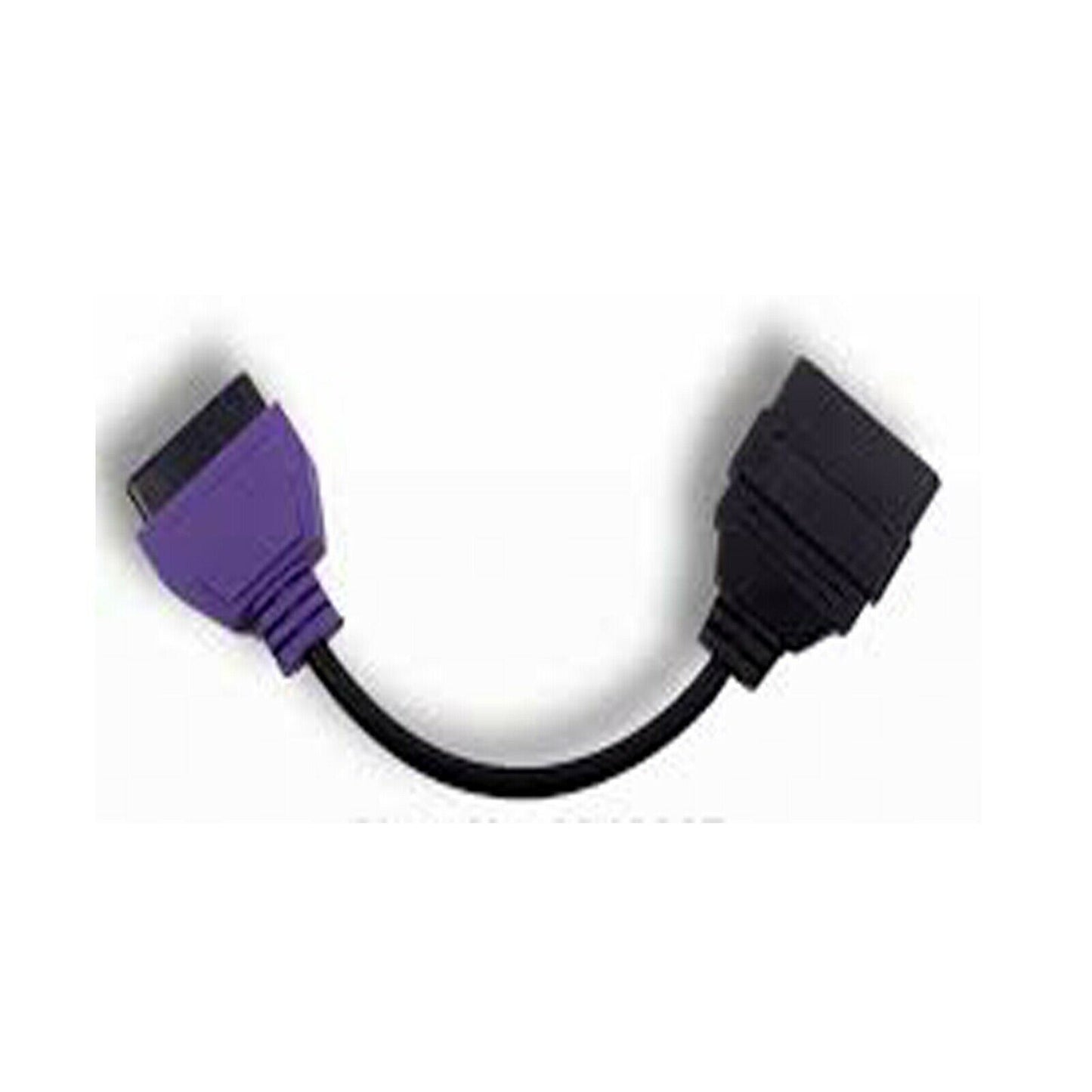

Purple Adapter Lead = Female pin 7 to male pins 7,8,11,13
Blue Adapter Lead = Female pin 6 to male pin 3 / Female pin 14 to male pin 11
Grey Adapter Lead = Female pin 6 to male pin 12 / Female pin 14 to male pin 13
