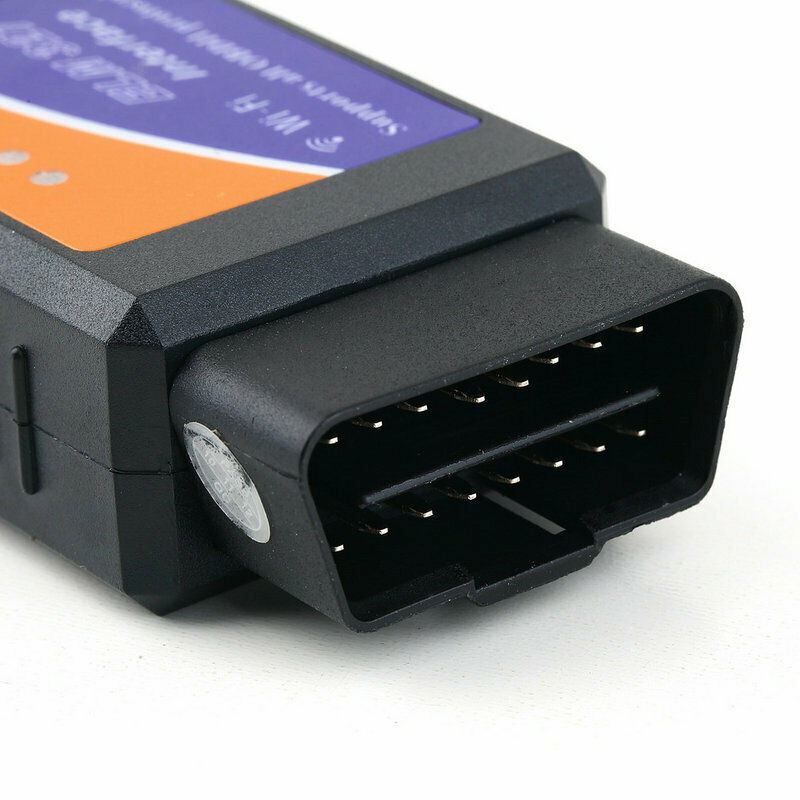

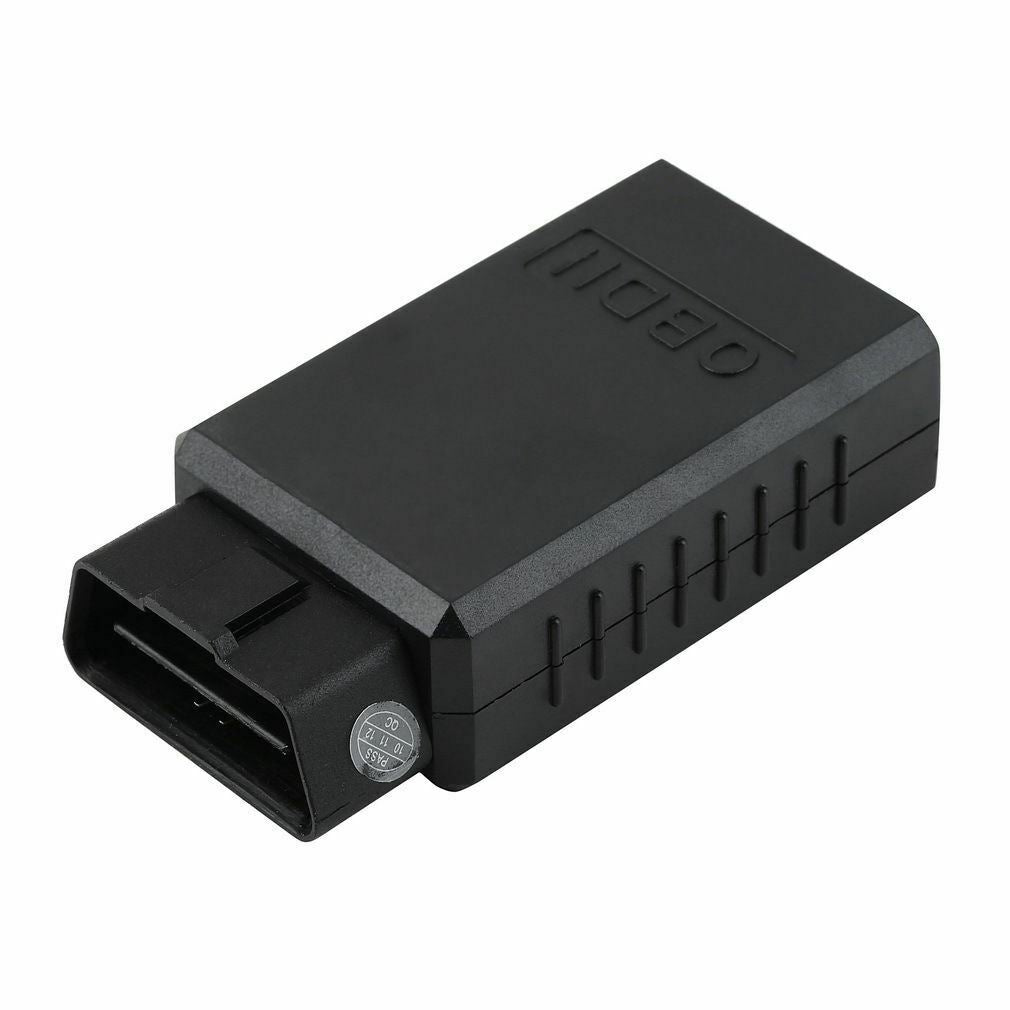

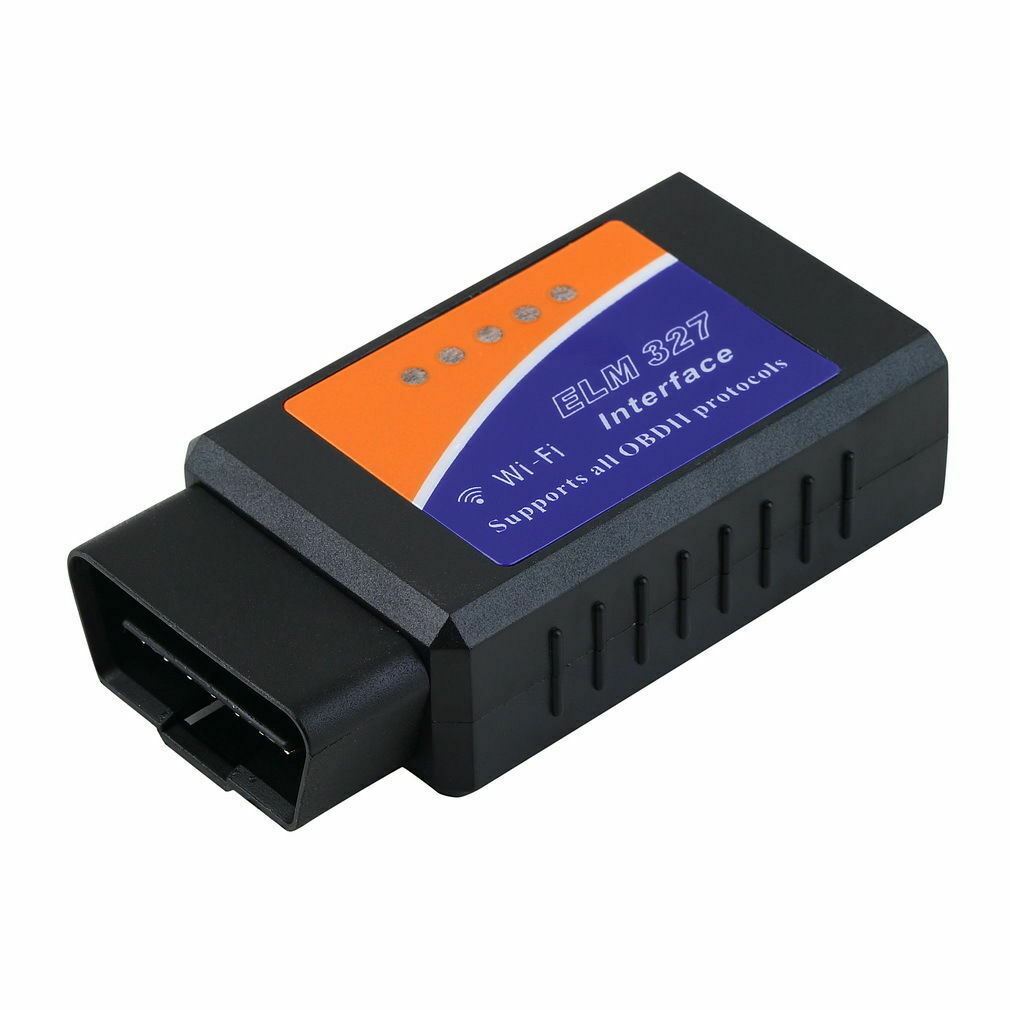

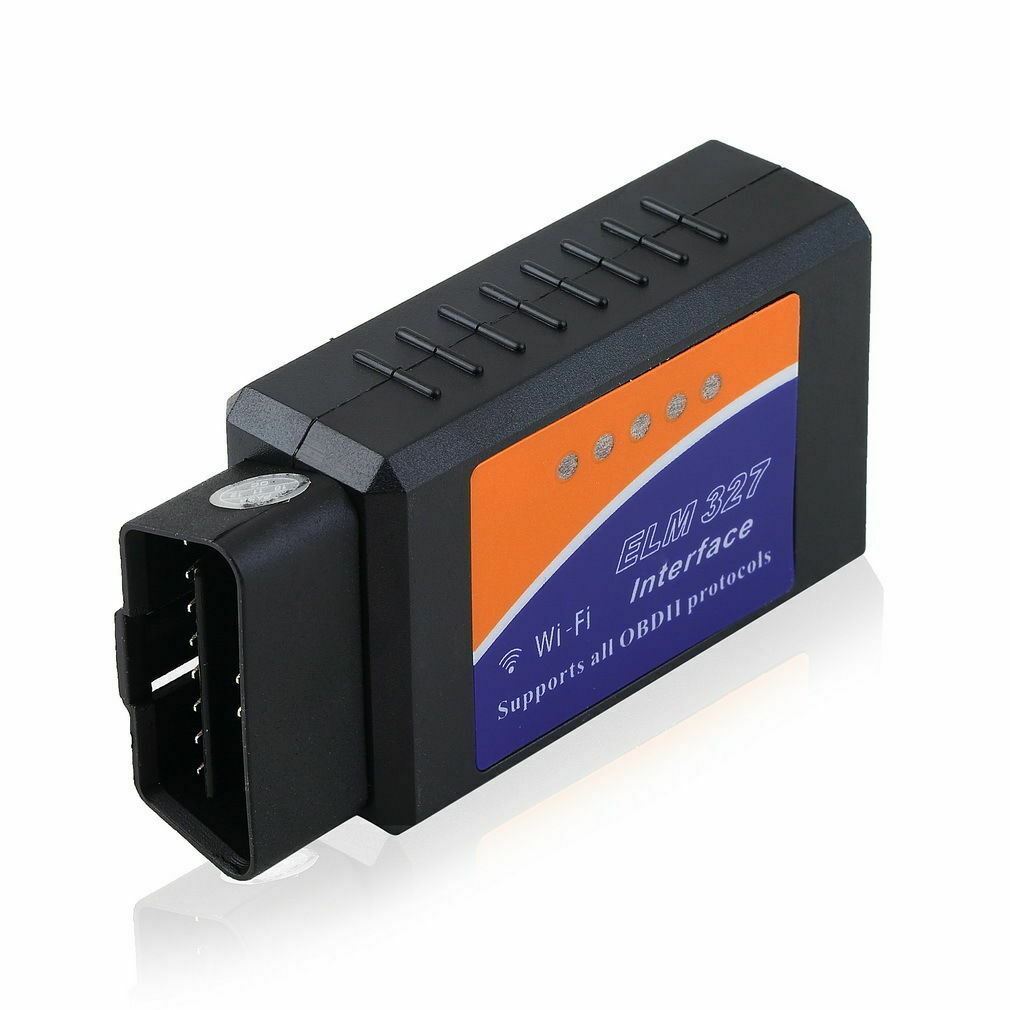

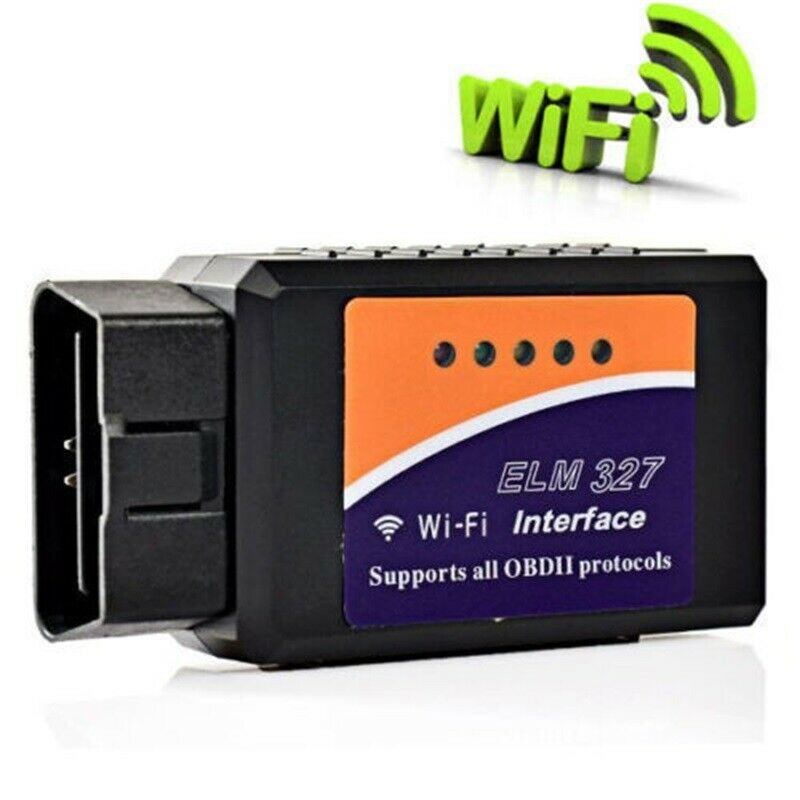

ELM327 Wireless Wifi OBD2 Auto Cars Diagnostic Scanner Tool For Android And iOS

  • $30.28
    Unit price per
Tax included. Shipping calculated at checkout.


Features

Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light

Compatible with BOTH Apple® iOS and Android devices

Pays for itself with one use

Hassle-free setup: Setup in seconds

View real-time vehicle data, graphs and performance parameters while you're driving

Find and fix problems before they happen

Support for low power sleep mode and high-speed communication

Compatible with all OBDII compliant vehicles

Wi-Fi connection provides a wider operating range than Bluetooth®

Compatible with SAE J1850 PWM and SAE J1850 VPW protocols found on many Ford and GM vehicles (these protocols are NOT supported on cheaper scanners)

Display and record real-time sensor data, including

Vehicle Speed

RPM

Fuel Consumption

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow Rate

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim

Engine RPM,

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Timing Advance

Absolute Throttle Position

Oxygen sensor voltages / associated short term fuel trims

Specifications

  • SSID: WiFiOBD
  • IP: 192.168.0.10
  • Subnet: 255.255.255.0
  • Port: 35000
  • Range: 50 FT (Line of sight)
  • Antenna Type: Internal
  • Operating voltage: 12V, internal protection from short circuits / overvoltage’s
  • Nominal idle current: 45mA
  • Power Consumption: 0.75 Watts
  • Wi-Fi Standard: 802.11a/b/g
  • Operating Temperature: -15 to 100
  • Dimensions: 2.75 x 1.25 x 1.2 inches
  • Item Weight: 59.3g

Compatible Protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

SAE J1850 PWM (Found on many Ford vehicles)

SAE J1850 VPW (Found on many GM vehicles)

Apple iOS and Android Easy Setup

Go to WiFi settings, search for the WiFi connection from the scanner and connect to it

Open your favorite application and connect. If necessary, set the IP to 192.168.0.10 and Port 35000 in settings

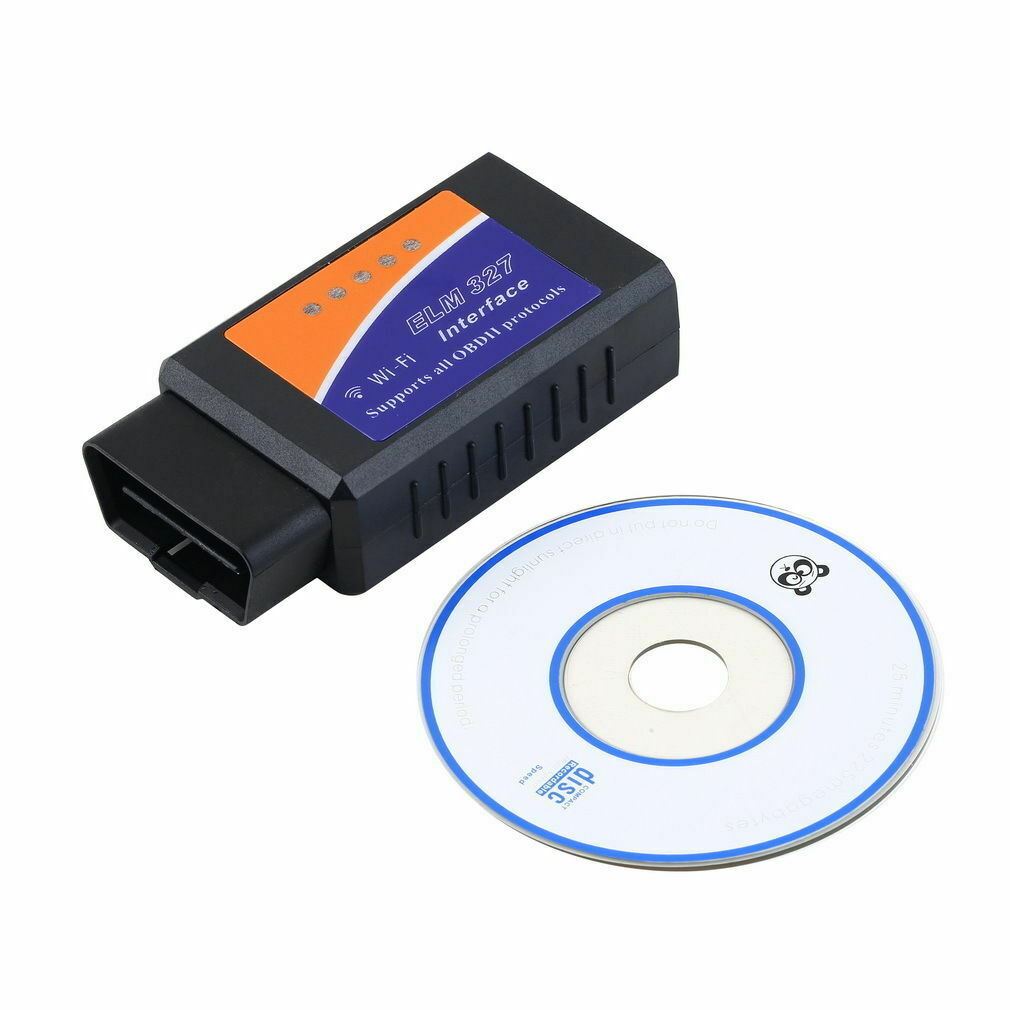

Package Includes:

1 x ELM 327 WIFI Car Diagnostic Scanner Tool

1 x CD Driver
