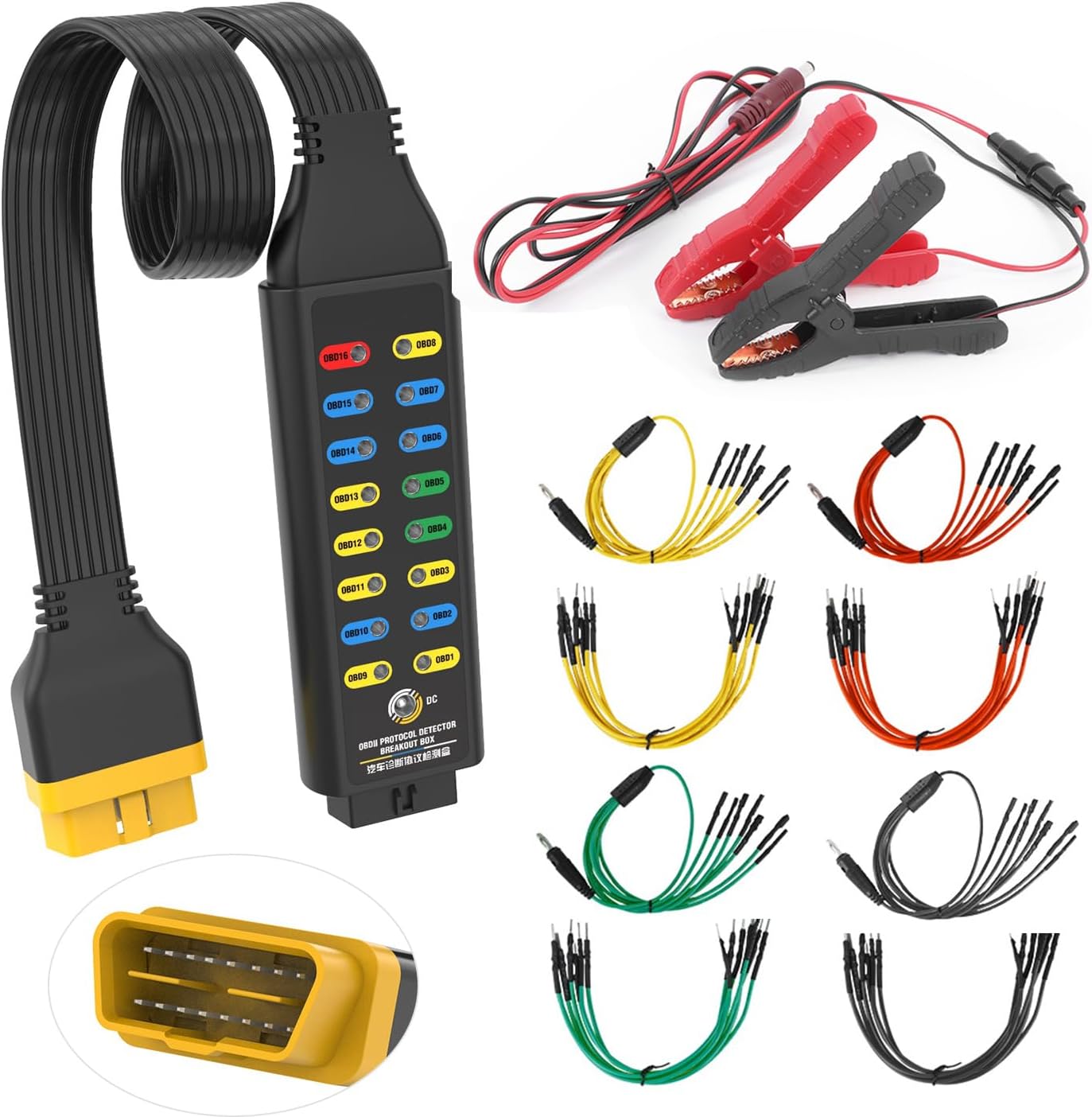

OBD2 Breakout Box, Automotive OBDII Protocol Detector Communication/Power/Ground Detection Breakout Box 16-Pin CAN 17.7 inches Cable Fault Diagnosis Scan Tool with Universal Wire Jumper and Clips

About this item

• Basic Introduction The upgraded OBD2 Breakout Box is a specialized automotive tool designed for OBD diagnostic link connectors. It ebles simultaneous connection to multiple diagnostic devices for testing purposes. This tool offers convenient and secure access to the OBDII connector, allowing for the monitoring of protocol sigls, power, and grounds.

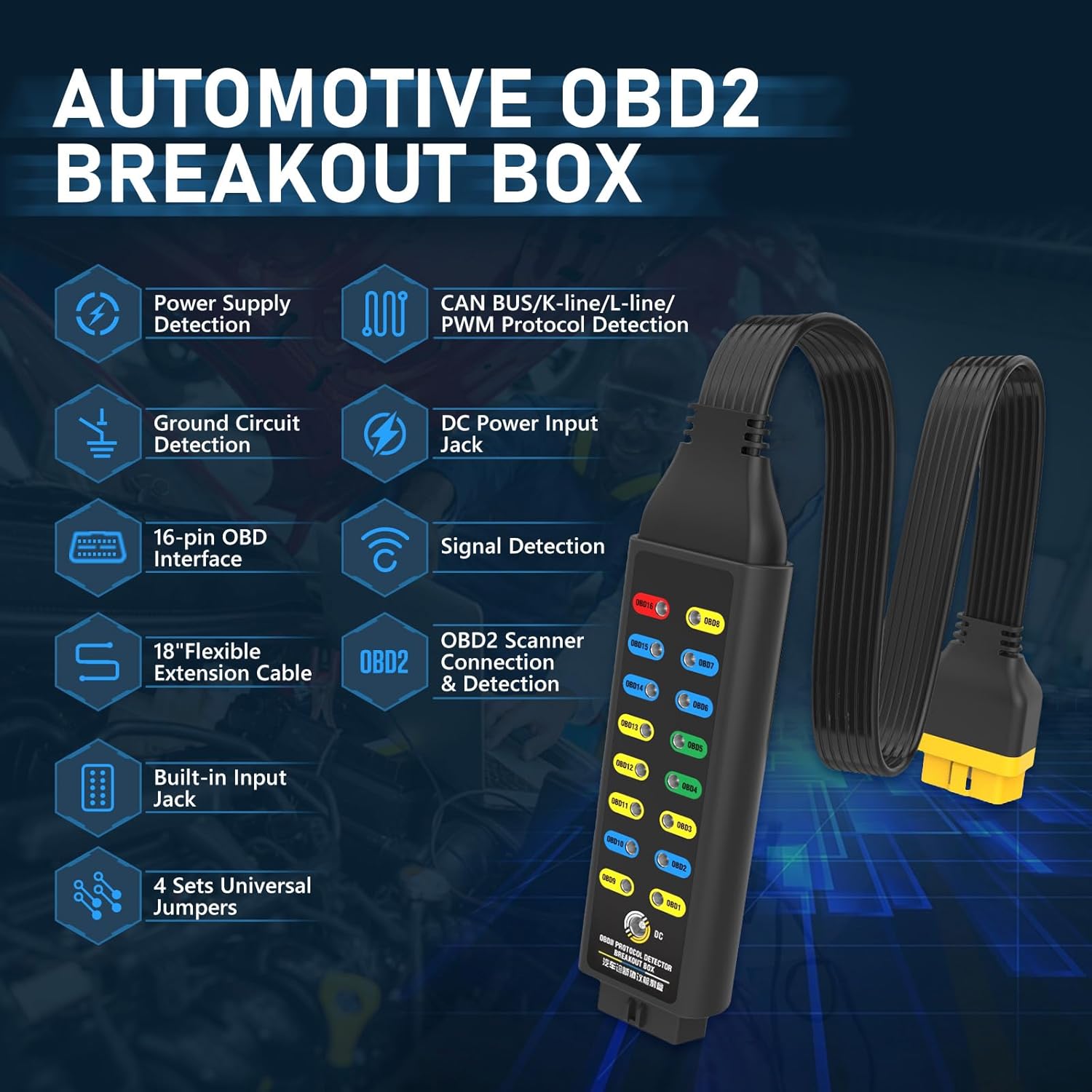

• Powerful Features This breakout box kit can also power the on-board computer, test OBD voltages, and perform other functions. The OBDII Breakout Box can be easily connected directly to the vehicle's on-board data link, providing straightforward access to the vehicle's data bus line.

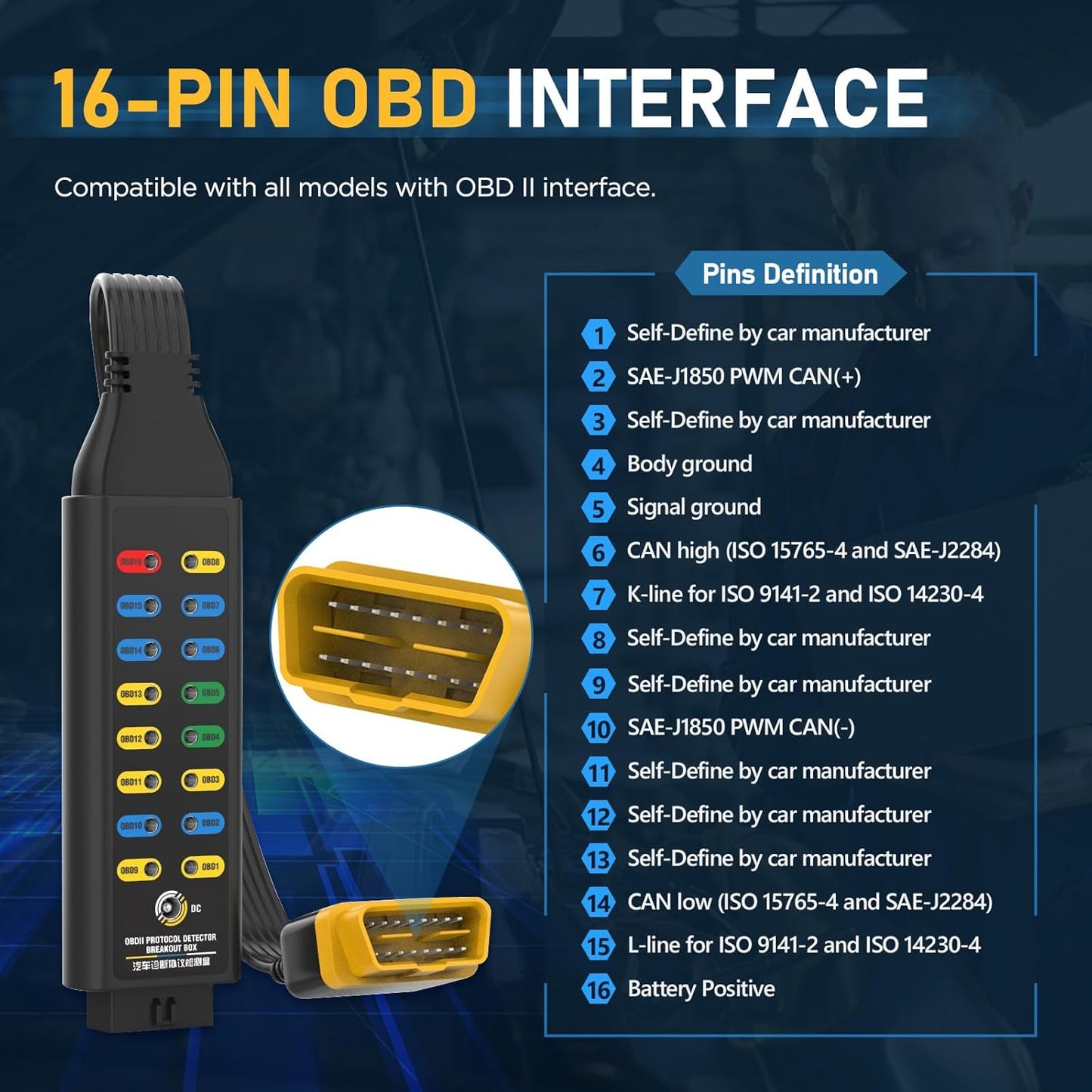

• 16 Pins OBDII Interface The input jack arrangement of the OBDII diagnostic link connector faithfully replicates the 16-pin configuration of the OBDII interface. This design facilitates rapid and straightforward testing of a wider range of connections, granting you swift access to all 16 pins for efficient vehicle servicing and diagnostics.

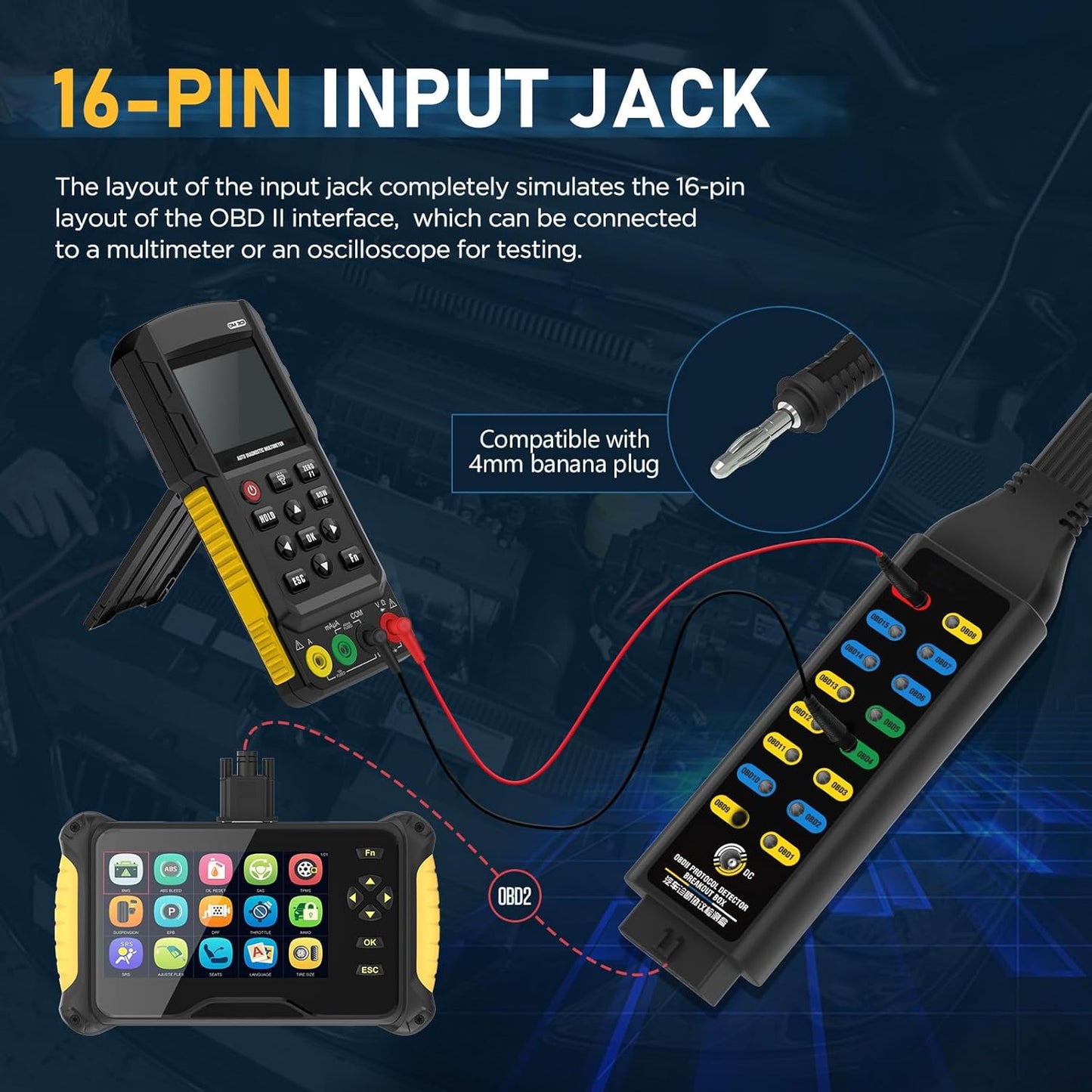

• Built-In 4mm Input Jacks The Automotive OBDII Protocol Monitor features built-in input jacks compatible with 4mm baa plugs, facilitating easy connections to multimeters or oscilloscopes for more in-depth measurements. By linking to a DC 8V-30V power source, it can supply power to the vehicle's ECU, making it useful for battery replacements and related tasks.

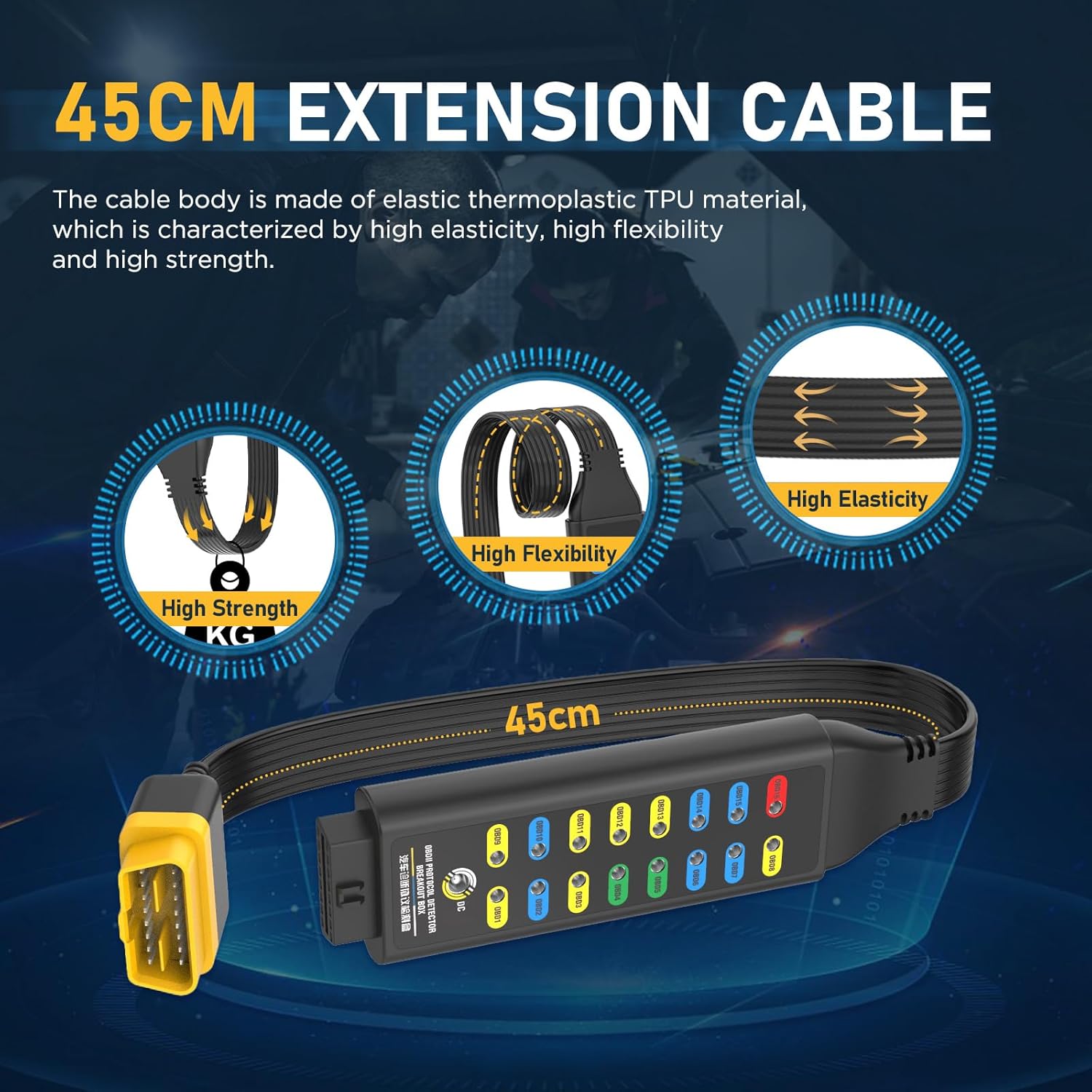

• Flexible Cable & 5ft Battery Alligator Clip The OBD II extension cable spans 17.7 inches, Crafted from supple thermoplastic TPU material, which is durable.The 5-foot battery alligator clip cable is tailored for DC2.1*5.5mm connections, perfectly suited for DC12V at 2A power supply..Multiple Protocol Types Testing OBDII Protocol Detector supports for CAN bus, K line, L line, and PWM protocol testing, encompassing a wide array of protocol types.
