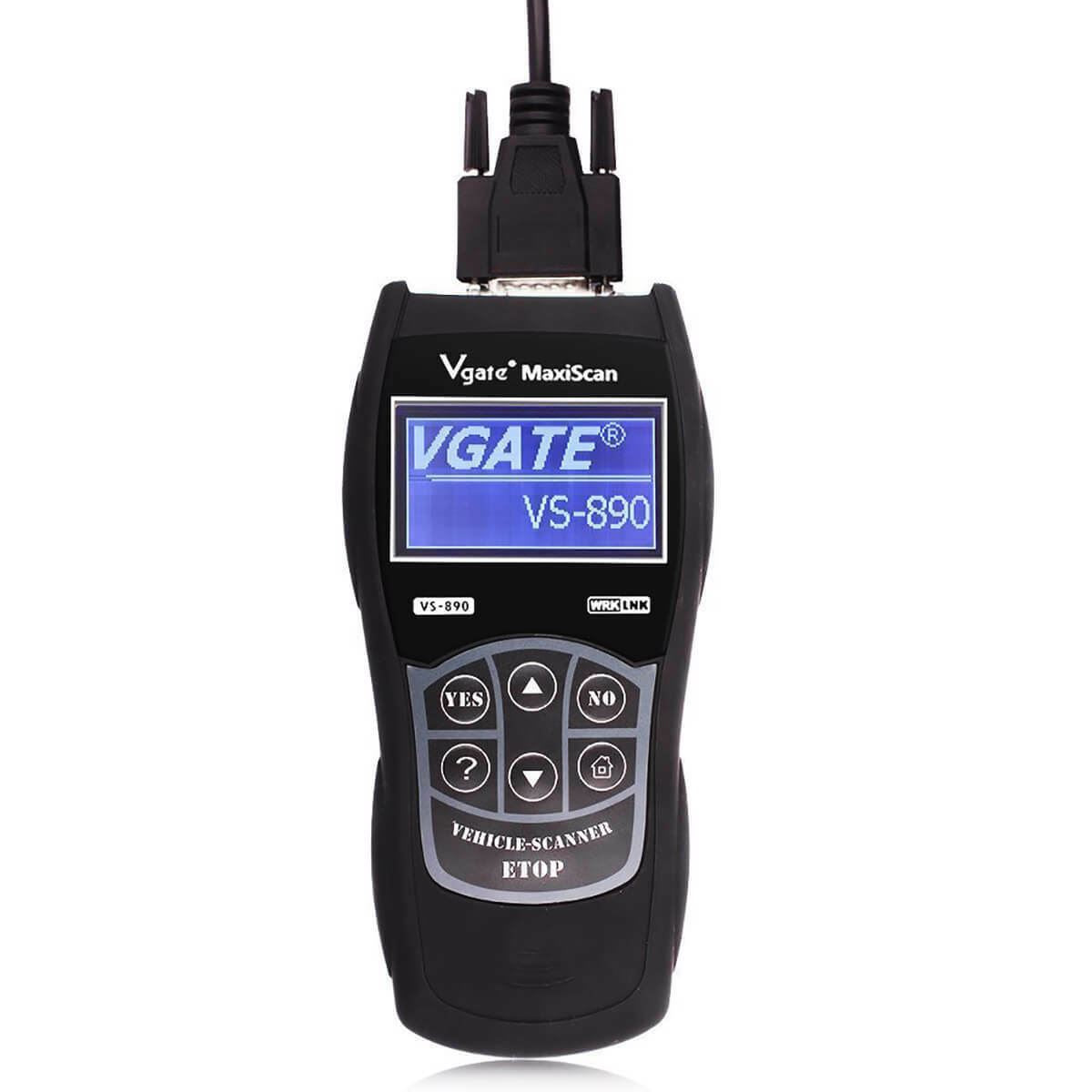

VGATE VS890 Multilanguage OBD2 Auto LCD Engine Fault Code Reader Checker Scanner

Description

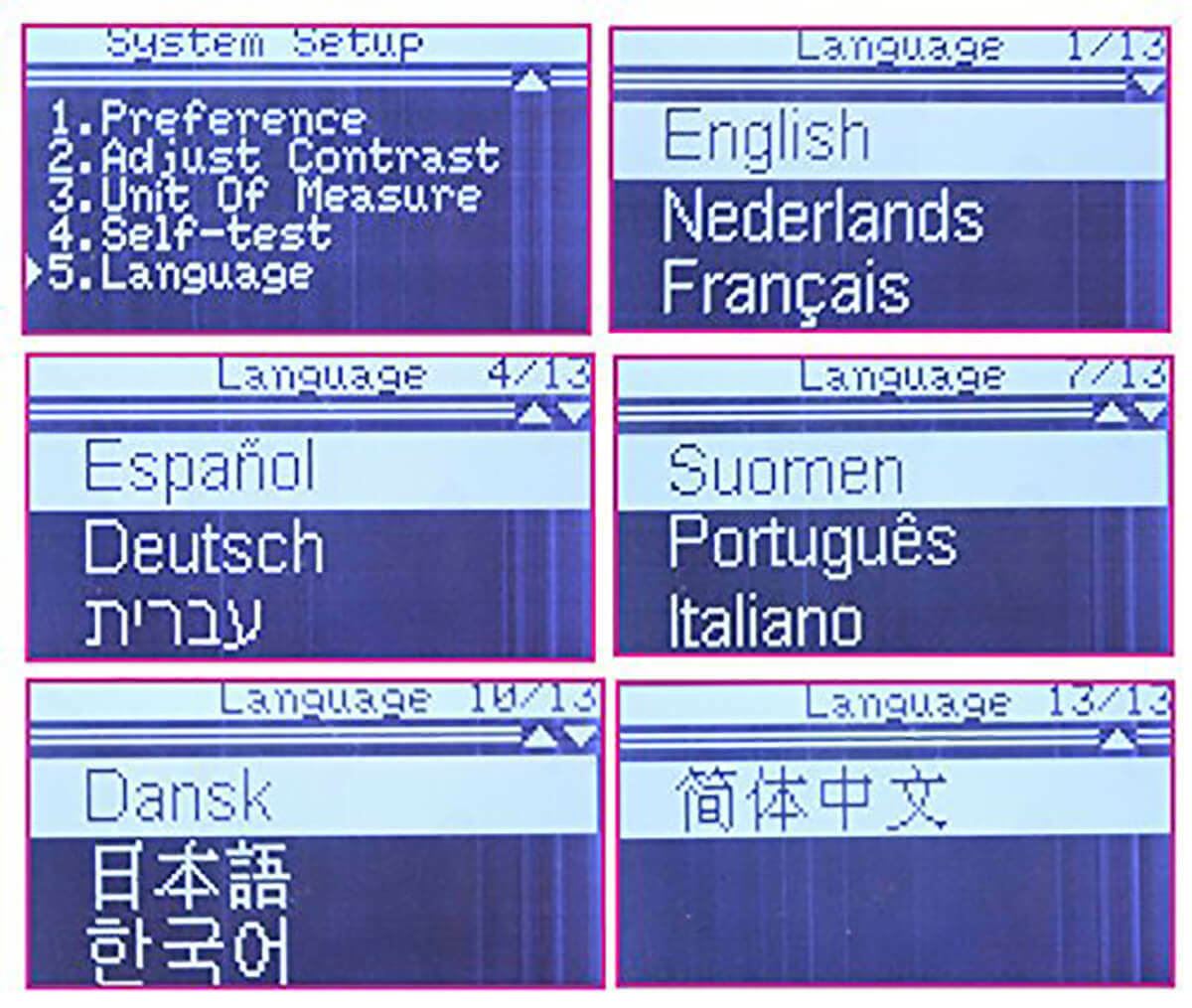

Multi-language user interface supports up to 13 languages

Application layer fully complies with ISO 15031 and is compliant with SAE J1979.

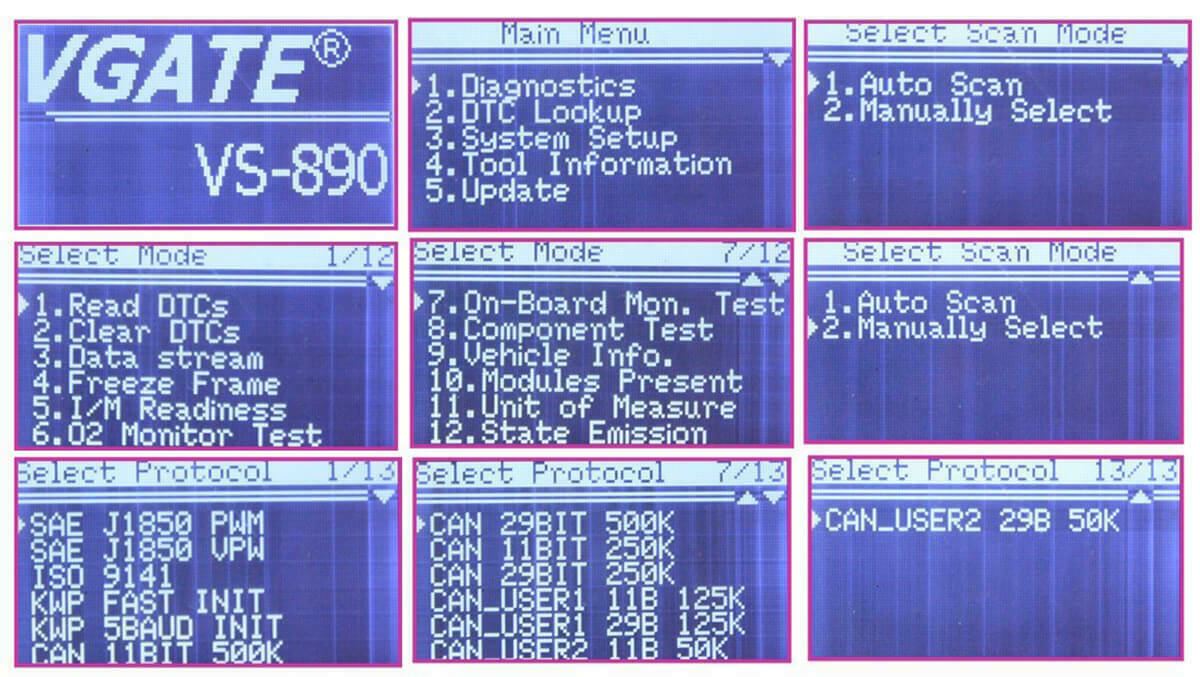

Fully functional Mode$01~Mode$09 operations.

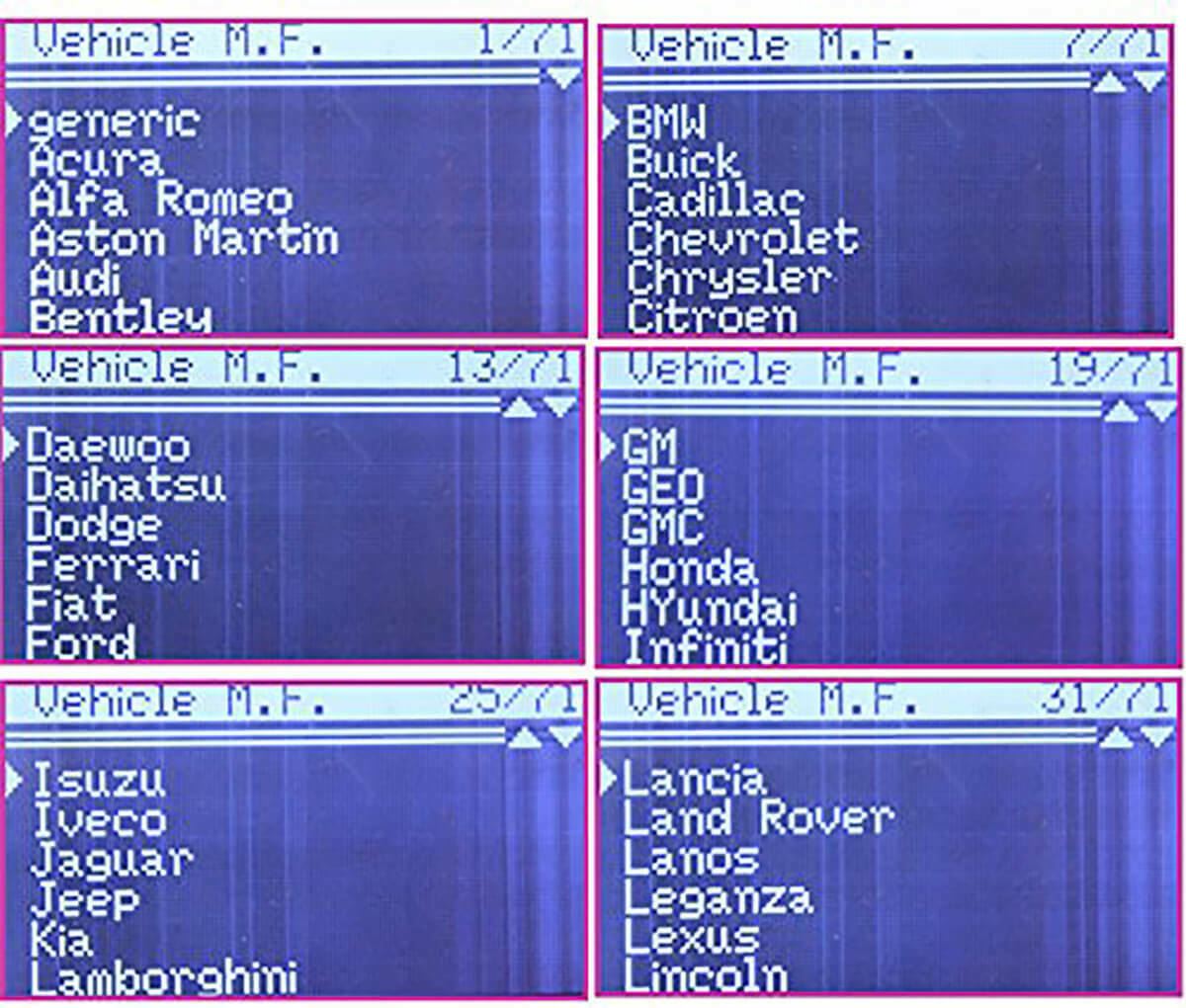

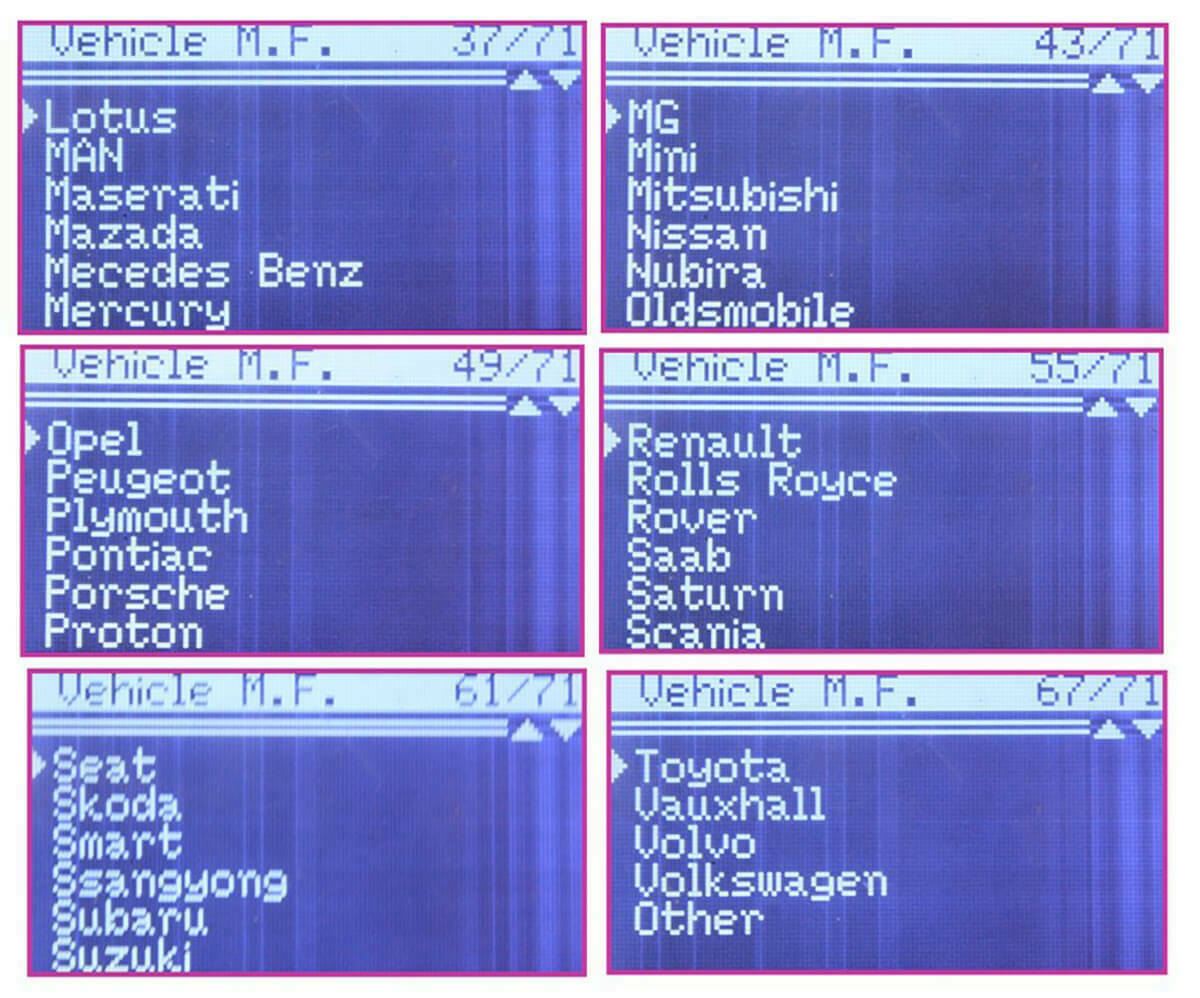

Supports a large number of vehicles made by 70 manufacturers.

DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1, B2, U1 and C1, C2,) codes.

Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs, which shows the probable cause of the code.

Supported Protocol

Features

• LCD: 3-inch black mask LCD, wide visible area, high contrast. The contents is readable even in strong sunshine
• ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5
• Harmless fade-resistant paint
• Rubber oil sprayed housing; slide, dirty, and vibration proof
• Passed EMI/EMC test
• High-quality PET 6-key film keypad. (3M harmless glue)
• CE, FCC, ROHS Certified
• Support manually input DTC Look-up
• Read DTCs
• Clear DTCs
• Data stream
• Freeze Frame
• I/M Readiness
• O2 Monitor Test
• On-Board Mon Test
• Component Test
• Vehicle Info
• Modules Present
• Unit of Measure
• State Emission
• Read All DTCs
• Read Stored DTCs
• Read Pending DTCs
• Detailed help information
• Capable of showing probable cause of a DTCs
• Up to 161 data items, each of them is with online help information
• Reset engine MIL
• This operation will erase all DTCs, freeze frame Data, oxygen sensor data, and reset IM Monitors and MIL

Note: This product only supports gasoline vehicle and cannot be updated.

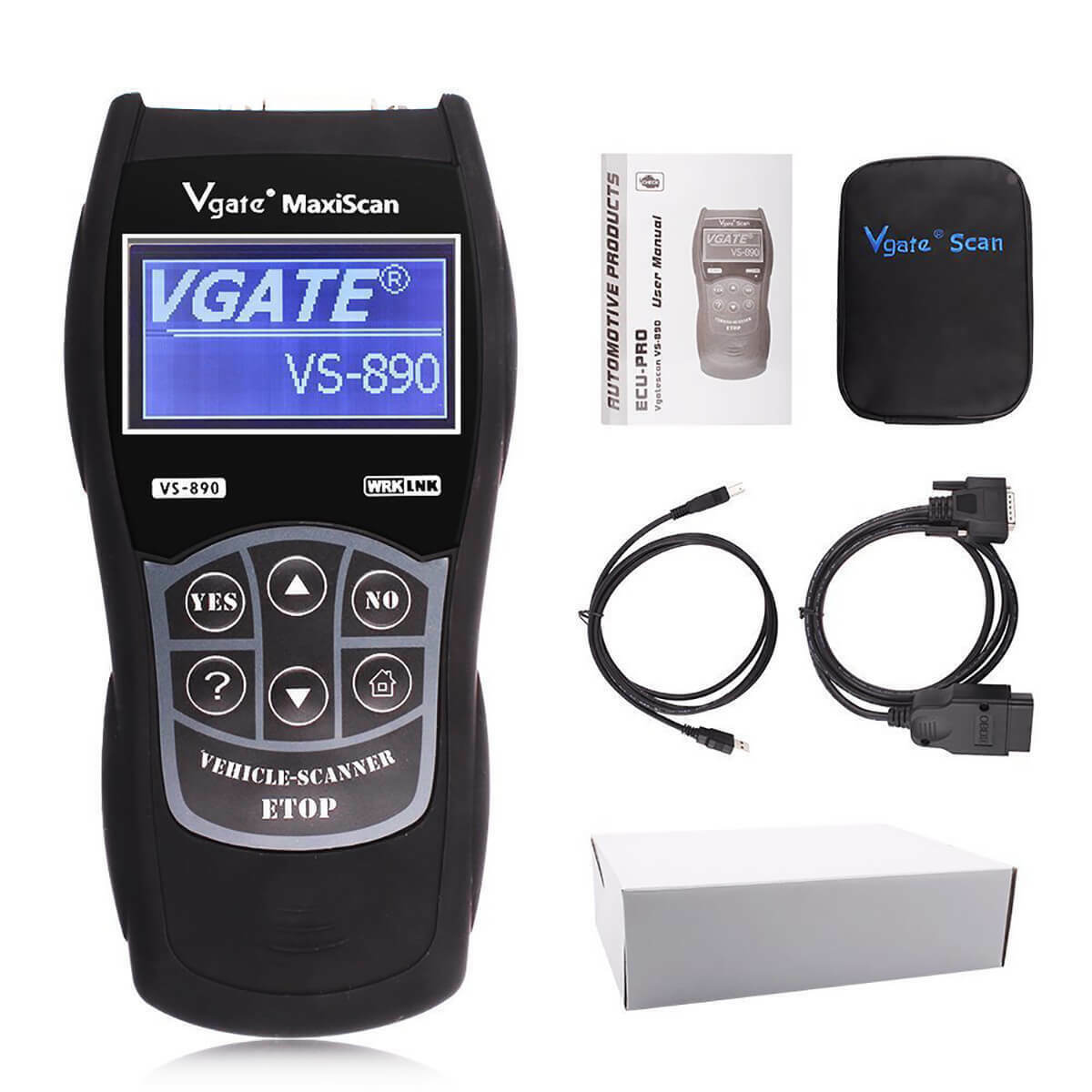

Package Includes:

1 X Main Unit

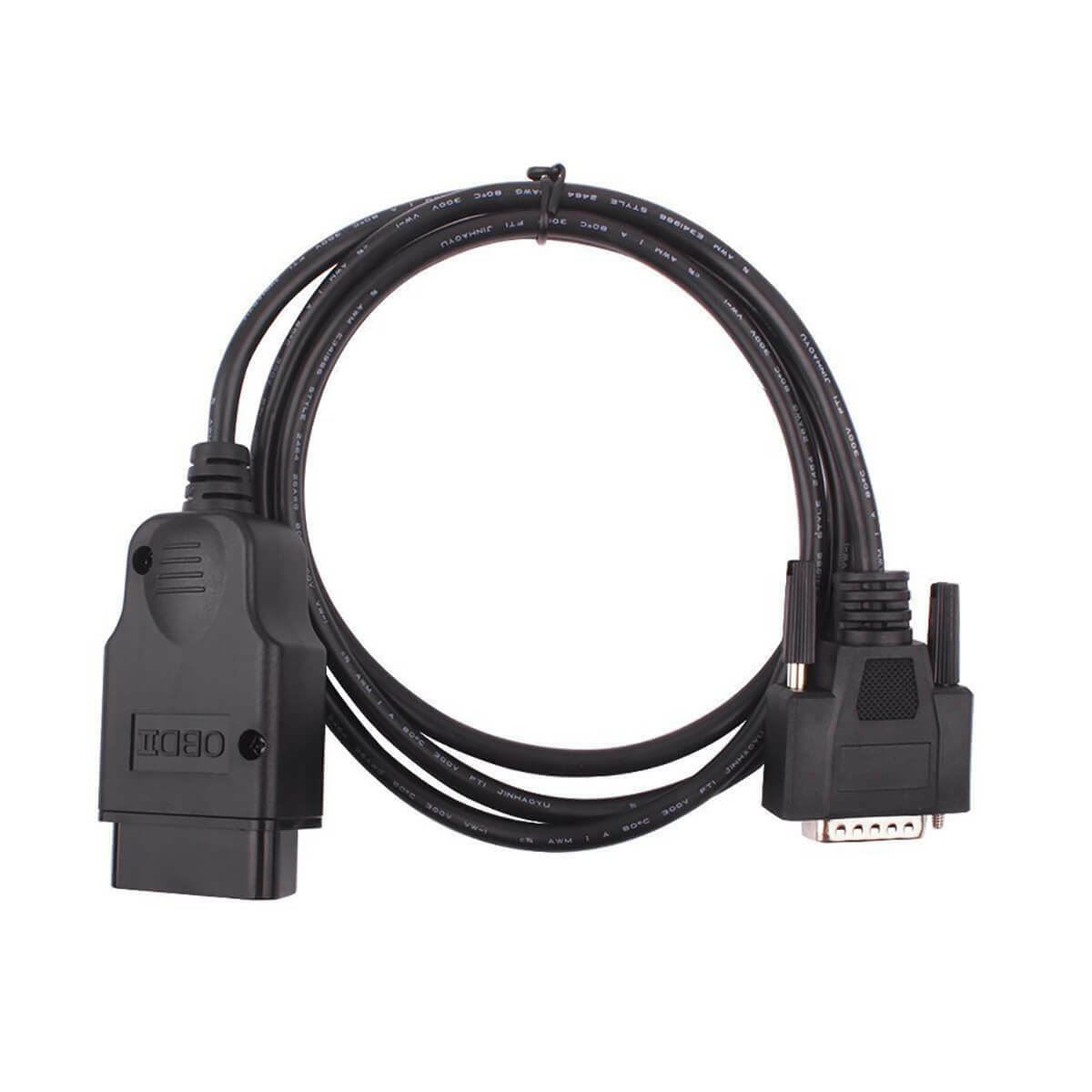

1 X Cable: J1962 120cm

1 X UBS Cable

1 X Carry Case

1 X User Manual
